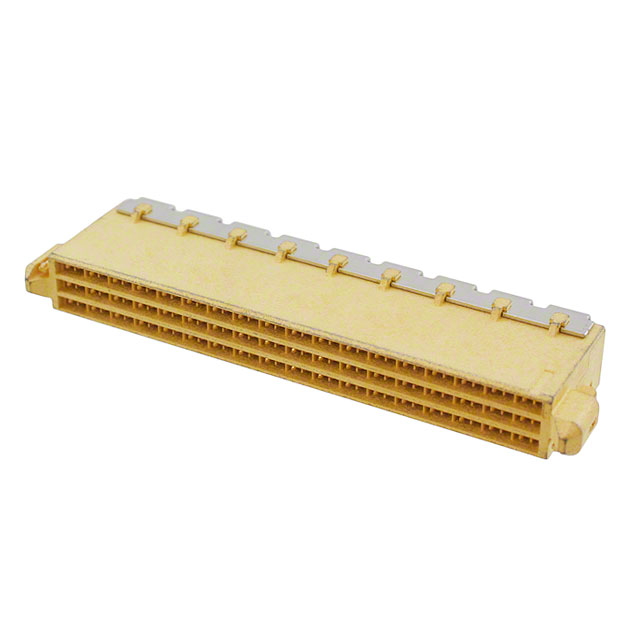

0750190013
Or copy the link below:
- Mfr.Part #
- 0750190013
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 108POS GOLD PCB R/A
- Stock
- 9,340
- In Stock ：
- 9,340
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Receptacles, Female Sockets
- Contact Shape :
- Square
- Pitch :
- 3.96mm
- RoHS Status :
- ROHS3 Compliant
- Orientation :
- RIGHT ANGLE
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Voltage - Rated :
- 12V
- Contact Length - Post :
- 0.111 2.82mm
- Halogen Free :
- Low Halogen
- Number of Positions Loaded :
- All
- Connector Type :
- Receptacle
- Contact Material :
- COPPER ALLOY
- Packaging :
- Tray
- Number of Rows :
- 3
- Contact Plating :
- Lead, Tin
- Mount :
- Through Hole
- Termination :
- Solder
- Contact Type :
- Female Socket
- Style :
- Board to Board
- Housing Material :
- Thermoplastic
- Min Operating Temperature :
- -20°C
- Glow Wire Compliant :
- Non-Compliant
- Insulation Height :
- 0.393 9.98mm
- Series :
- Plateau HS Dock 75019
- Number of Circuits :
- 108
- Contact Finish - Mating :
- Gold
- Applications :
- General Purpose, Industrial, Military, Telecommunications
- Number of Positions :
- 108
- Material Flammability Rating :
- UL94 V-0
- Mounting Type :
- Through Hole, Right Angle
- Feature :
- Board Guide
- Max Operating Temperature :
- 85°C
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Fastening Type :
- Push-Pull
- Contact Finish - Post :
- Tin
- Current Rating :
- 1.5A
- Insulation Material :
- Liquid Crystal Polymer (LCP), Halogen Free
- Operating Temperature :
- -20°C~85°C
- Number of Contacts :
- 108
- Datasheets
- 0750190013
3 Rows Receptacle Solder Copper Alloy Through Hole, Right Angle Tray Gold Liquid Crystal Polymer (LCP), Halogen Free 108 Positions Female Socket
0750190013 Overview
You get it in Receptacle packaging.Mounting type Through Hole, Right Angle is selected for the device.Packaged in a Tray case.A member of the Plateau HS Dock 75019 Series.Using it at a temperature below 85°C is ideal.A minimum temperature of -20°C is needed for this device.Here's a possible application for the device: General Purpose, Industrial, Military, Telecommunications.This feature renders it more powerful in a number of ways because of its Board Guide feature.There's a Through Hole mount on the part.It's got 108 circuits.Device runs in -20°C~85°C operating temperature.
0750190013 Features
Plateau HS Dock 75019 series
0750190013 Applications
There are a lot of Molex
0750190013 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
