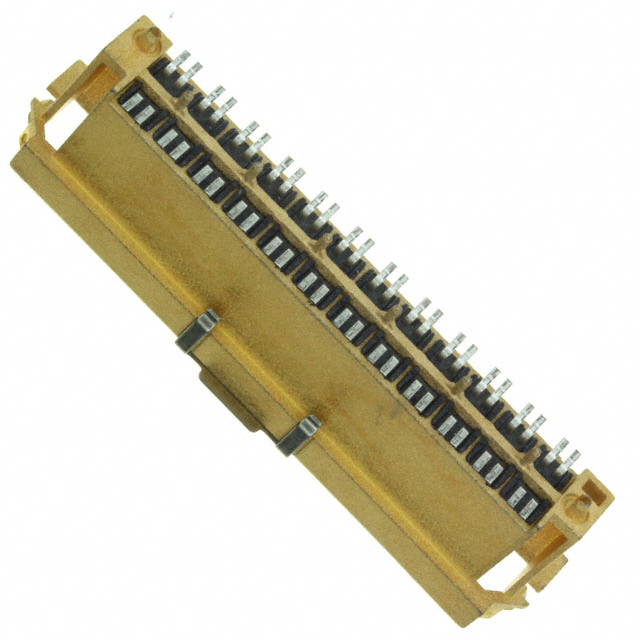

0750030110
Or copy the link below:
- Mfr.Part #
- 0750030110
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN DIFF ARRAY PLG 48P SMD GOLD
- Stock
- 18,175
- In Stock ：
- 18,175
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Arrays, Edge Type, Mezzanine (Board to Board)
- UL Flammability Code :
- 94V-0
- IEC Conformance :
- No
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Contact Finish :
- Gold
- Packaging :
- Tube
- Number of Rows :
- 2
- Stack Height (Mating) :
- 15mm 17mm 25mm
- JESD-609 Code :
- e3
- Total Number of Contacts :
- 48
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Mixed Contacts :
- No
- Connector Type :
- Differential Pair Array, Male
- Height Above Board :
- 0.522 13.25mm
- Additional Feature :
- SHROUDED
- Factory Lead Time :
- 9 Weeks
- Contact Material :
- NOT SPECIFIED
- Pitch :
- 0.047 1.20mm
- Feature :
- Board Guide
- DIN Conformance :
- No
- Series :
- Plateau HS Mezz 75003
- Option :
- GENERAL PURPOSE
- Number of Positions :
- 48
- MIL Conformance :
- No
- Filter Feature :
- No
- Mounting Type :
- Surface Mount
- RoHS Status :
- ROHS3 Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Pbfree Code :
- yes
- Datasheets
- 0750030110
0750030110 Documents
Differential Pair Array, Male Tube 2 Rows 0.047 1.20mm Surface Mount 48 Positions Plateau HS Mezz 75003 Gold NOT SPECIFIED
0750030110 Overview
A Differential Pair Array, Male package is included with it.Packaging is performed using a Tube case.Its mounting type is Surface Mount.It is part of the Plateau HS Mezz 75003 Series of products.In operation, Board Guide may be maintained.Additionally, there are other features, such as SHROUDED.
0750030110 Features
Plateau HS Mezz 75003 series
Package / Case: Tube
Mounting Type:Surface Mount
Additional Feature: SHROUDED
0750030110 Applications
There are a lot of Molex
0750030110 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
