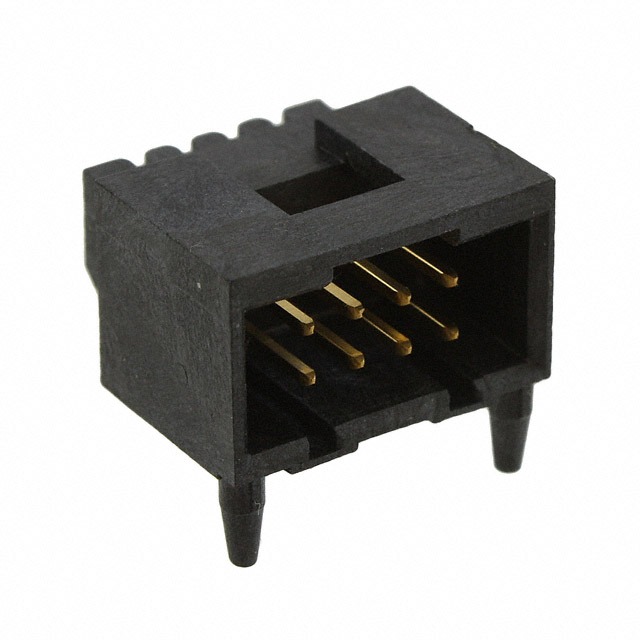

0741640008
Or copy the link below:
- Mfr.Part #
- 0741640008
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 8POS 2.54MM
- Stock
- 1,275
- In Stock ：
- 1,275
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Contact Shape :
- Square
- Contact Finish Thickness - Post :
- 74.8μin 1.90μm
- Fastening Type :
- Latch Holder
- Contact Type :
- Male Pin
- Factory Lead Time :
- 5 Weeks
- Connector Type :
- Receptacle
- Packaging :
- Tube
- Contact Material :
- COPPER ALLOY
- Material Flammability Rating :
- UL94 V-0
- Contact Finish - Mating :
- Gold
- Termination :
- Solder
- Mounting Type :
- Through Hole, Right Angle
- Series :
- C-Grid 74164
- Number of Positions Loaded :
- All
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Applications :
- Automotive, General Purpose, Lighting, Medical, Telecommunications
- Shrouding :
- Shrouded - 4 Wall
- Contact Finish Thickness - Mating :
- 15.0μin 0.38μm
- Contact Finish - Post :
- Tin
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Contact Length - Mating :
- 0.315 8.00mm
- Insulation Color :
- Black
- Contact Length - Post :
- 0.130 3.30mm
- Number of Rows :
- 2
- RoHS Status :
- ROHS3 Compliant
- Insulation Height :
- 0.420 10.67mm
- Number of Positions :
- 8
- Style :
- Board to Board
- Pitch - Mating :
- 0.100 2.54mm
- Insulation Material :
- Liquid Crystal Polymer (LCP), Glass Filled
- Feature :
- Board Guide
- Datasheets
- 0741640008
C-Grid 74164 Series 2-Row Receptacle Solder Copper Alloy Tube Through Hole, Right Angle Gold Liquid Crystal Polymer (LCP), Glass Filled 8-Position Board to Board 0.420 10.67mm Height
0741640008 Overview
Packaging is Receptacle.Through Hole, Right Angle is the mounting type.Packaging for the product is carried out via a Tube case.As a product of the C-Grid 74164 Series, it can be found in this category.A possible application of the device would be Automotive, General Purpose, Lighting, Medical, Telecommunications.With its Board Guide feature, it is more powerful in many ways.
0741640008 Features
C-Grid 74164 series
0741640008 Applications
There are a lot of Molex
0741640008 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
