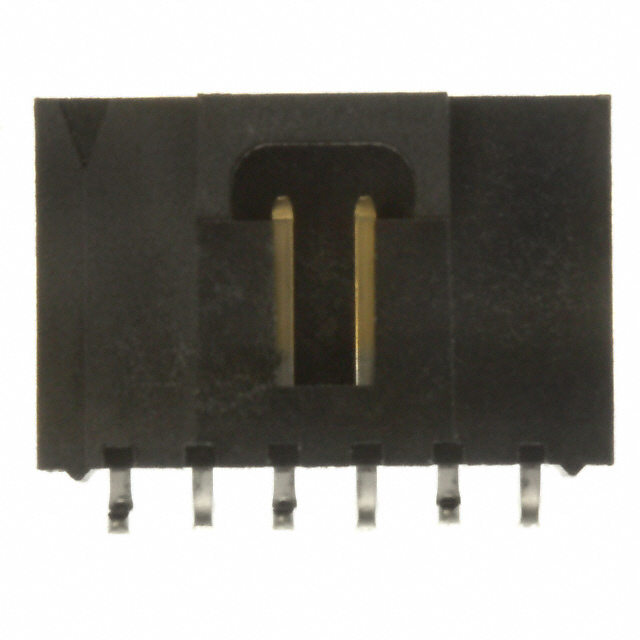

0740991006
Or copy the link below:
- Mfr.Part #
- 0740991006
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 6POS 2.54MM
- Stock
- 5,617
- In Stock ：
- 5,617
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Contact Finish - Post :
- Tin
- Pitch - Mating :
- 0.100 2.54mm
- Shrouding :
- Shrouded - 4 Wall
- Termination :
- Solder
- Number of Rows :
- 1
- ECCN Code :
- EAR99
- Number of Positions Loaded :
- All
- Contact Finish Thickness - Mating :
- 15.0μin 0.38μm
- Insulation Color :
- Black
- Rated Current (Signal) :
- 3A
- Factory Lead Time :
- 10 Weeks
- Fastening Type :
- Latch Holder
- Contact Length - Mating :
- 0.240 6.10mm
- JESD-609 Code :
- e3
- Number of Positions :
- 6
- Contact Finish - Mating :
- Gold
- Contact Material :
- Phosphor Bronze
- Reference Standard :
- UL, CSA
- Insulation Height :
- 0.450 11.43mm
- Style :
- Board to Cable/Wire
- Durability :
- 50 Cycles
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Finish Thickness - Post :
- 74.8μin 1.90μm
- RoHS Status :
- ROHS3 Compliant
- Packaging :
- Tube
- Insulation Material :
- Polyester, Glass Filled
- Total Number of Contacts :
- 6
- Number of Conductors :
- ONE
- Mounting Type :
- Surface Mount
- Contact Shape :
- Square
- Material Flammability Rating :
- UL94 V-0
- Contact Type :
- Male Pin
- Applications :
- Automotive, General Purpose, Industrial, Medical
- Contact Resistance :
- 30mOhm
- Operating Temperature (Min) :
- -40°C
- Reliability :
- COMMERCIAL
- Mounting Option 1 :
- LOCKING
- Connector Type :
- Header
- Series :
- SL 74099
- Datasheets
- 0740991006
0740991006 Documents
SL 74099 Series 1-Row Header Solder Phosphor Bronze Tube Surface Mount Gold Polyester, Glass Filled 6-Position Board to Cable/Wire 0.450 11.43mm Height
0740991006 Overview
The packaging contains Header.There is a Surface Mount mounting type for the device.This product is packaged in a case marked Tube.Product number SL 74099 belongs to the SL 74099 Series.In addition to Automotive, General Purpose, Industrial, Medical, there are other possible applications for the device.
0740991006 Features
SL 74099 series
0740991006 Applications
There are a lot of Molex
0740991006 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
