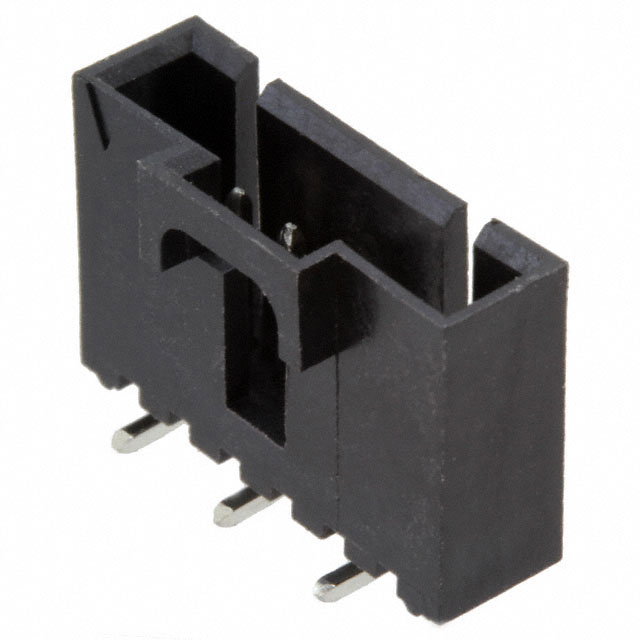

0740990606

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Factory Lead Time :

9 Weeks

Operating Temperature (Min) :

-40°C

Reference Standard :

UL, CSA

Contact Finish Thickness - Post :

150.0μin 3.81μm

Contact Material :

Phosphor Bronze

Applications :

Automotive, General Purpose, Industrial, Medical

Contact Finish - Mating :

Tin

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Conductors :

ONE

Mounting Type :

Surface Mount

Rated Current (Signal) :

3A

Shrouding :

Shrouded - 4 Wall

Number of Positions :

6

Contact Shape :

Square

Pitch - Mating :

0.100 2.54mm

Contact Type :

Male Pin

Number of Rows :

1

Mounting Option 1 :

LOCKING

Style :

Board to Cable/Wire

Insulation Material :

Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled

Series :

SL 74099

Material Flammability Rating :

UL94 V-0

Connector Type :

Header

Insulation Height :

0.450 11.43mm

Insulation Color :

Black

ECCN Code :

EAR99

Durability :

25 Cycles

Reliability :

COMMERCIAL

Contact Resistance :

30mOhm

Termination :

Solder

Packaging :

Tape and Reel (TR)

Feature :

Pick and Place

Fastening Type :

Latch Holder

Number of Positions Loaded :

All

Contact Length - Mating :

0.240 6.10mm

Total Number of Contacts :

6

RoHS Status :

ROHS3 Compliant

Contact Finish Thickness - Mating :

150.0μin 3.81μm
