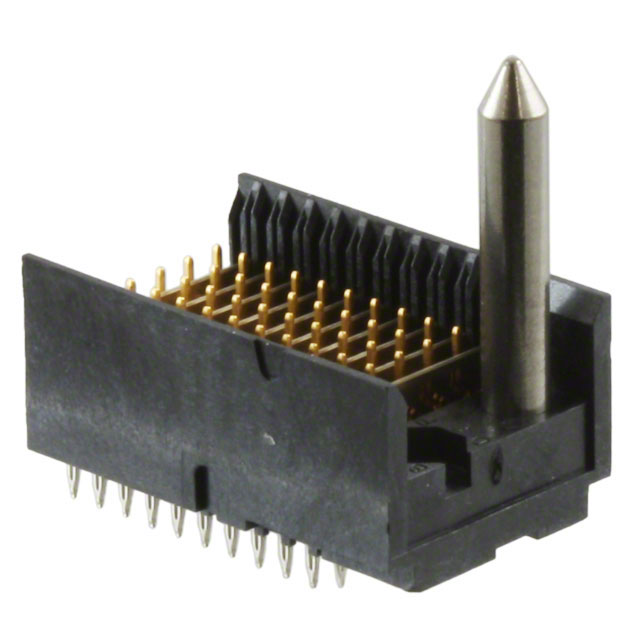

0740581002
Or copy the link below:
- Mfr.Part #
- 0740581002
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VHDM 60POS PCB
- Stock
- 85
- In Stock ：
- 85
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Specialized
- Number of Positions Loaded :
- All
- Operating Temperature :
- -55°C~105°C
- Filter Feature :
- No
- Packaging :
- Tube
- Mixed Contacts :
- No
- Mounting Type :
- Through Hole
- Option :
- GENERAL PURPOSE
- Additional Feature :
- PANEL MOUNTABLE
- Current Rating (Amps) :
- 2A
- Termination :
- Press-Fit
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- MIL Conformance :
- No
- Contact Material :
- NOT SPECIFIED
- Contact Finish :
- Gold
- Feature :
- Shielded
- RoHS Status :
- ROHS3 Compliant
- Pitch :
- 0.079 2.00mm
- Total Number of Contacts :
- 60
- Number of Rows :
- 6
- IEC Conformance :
- No
- DIN Conformance :
- No
- ECCN Code :
- EAR99
- Pbfree Code :
- yes
- Connector Type :
- Header, Male Pins
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- UL Flammability Code :
- 94V-0
- Number of Columns :
- 10
- Number of Positions :
- 60
- Material Flammability Rating :
- UL94 V-0
- Connector Style :
- VHDM, Guide Left
- Color :
- Black
- Voltage - Rated :
- 120V
- Series :
- VHDM 74058
- Factory Lead Time :
- 8 Weeks
- Datasheets
- 0740581002
VHDM 74058 Series Header, Male Pins Press-Fit Gold Black 60 Positions Pitch: 0.079 2.00mm -55°C~105°C Tube Through Hole
0740581002 Overview
Packaging is in the form of Header, Male Pins.This device has a Through Hole mounting type.An orange Tube case is used to package the product.Specifically, it is one of the products in the VHDM 74058 Series.Other features include PANEL MOUNTABLE, to name just a few.Several benefits come from the Shielded feature.Devices operate at -55°C~105°C operating temperatures.
0740581002 Features
VHDM 74058 series
0740581002 Applications
There are a lot of Molex
0740581002 Backplane Connectors applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
