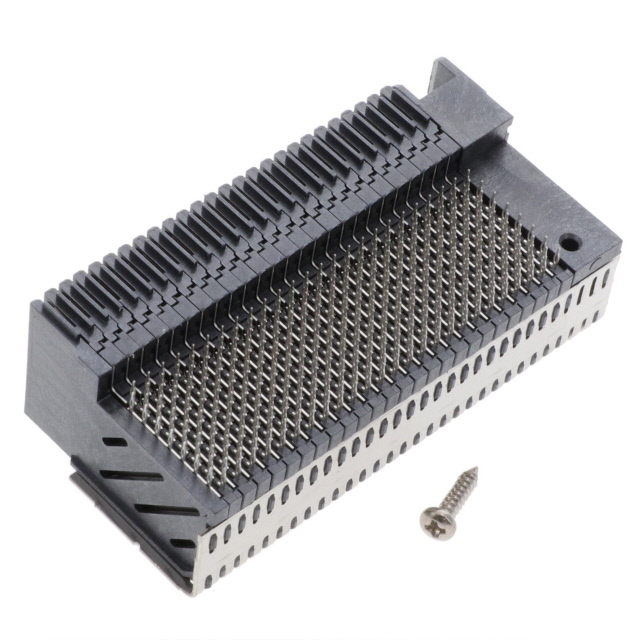

0740401343
Or copy the link below:
- Mfr.Part #
- 0740401343
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN VHDM 200POS EDGE MNT
- Stock
- 13
- In Stock ：
- 13
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Specialized
- ECCN Code :
- EAR99
- Packaging :
- Tube
- Number of Columns :
- 25
- Series :
- VHDM 74040
- Mounting Type :
- Board Edge, Through Hole, Right Angle
- Number Of PCB Rows :
- 8
- Number of Positions Loaded :
- All
- Contact Material :
- NOT SPECIFIED
- Dielectric Withstanding Voltage :
- 750VAC V
- Factory Lead Time :
- 6 Weeks
- Contact Resistance :
- 10MOhm
- RoHS Status :
- ROHS3 Compliant
- Reliability :
- COMMERCIAL
- Pbfree Code :
- yes
- Plating Thickness :
- 30μin
- Color :
- Black
- Connector Style :
- VHDM
- Voltage - Rated :
- 120V
- Feature :
- Shielded
- Length - Termination :
- 0.11 inch
- Mounting Option 1 :
- LOCKING
- Number of Rows :
- 8
- JESD-609 Code :
- e3
- Total Number of Contacts :
- 200
- Insulation Material :
- Thermoplastic
- Insulation Resistance :
- 10000000000Ohm
- Terminal Pitch :
- 2.0066mm
- Contact Finish :
- Gold
- Number of Positions :
- 200
- Mating Contact Pitch :
- 0.079 inch
- Operating Temperature :
- -55°C~80°C
- Insertion Force-Max :
- .3336 N
- Termination :
- Press-Fit
- Rated Current (Signal) :
- 1A
- Withdrawl Force-Min :
- .14734 N
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Reference Standard :
- UL
- Material Flammability Rating :
- UL94 V-0
- Contact Gender :
- FEMALE
- Number of Conductors :
- ONE
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Datasheets
- 0740401343
VHDM 74040 Series Press-Fit Gold Black 30.0μin 0.76μm 200 Positions -55°C~80°C Tube Board Edge, Through Hole, Right Angle
0740401343 Overview
Board Edge, Through Hole, Right Angle indicates that the device is mounted.An Tube case is utilized for packaging the product.The product is a part of the VHDM 74040 Series.In many ways, Shielded makes it more powerful.Operating temperature is set to -55°C~80°C.
0740401343 Features
VHDM 74040 series
0740401343 Applications
There are a lot of Molex
0740401343 Backplane Connectors applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
