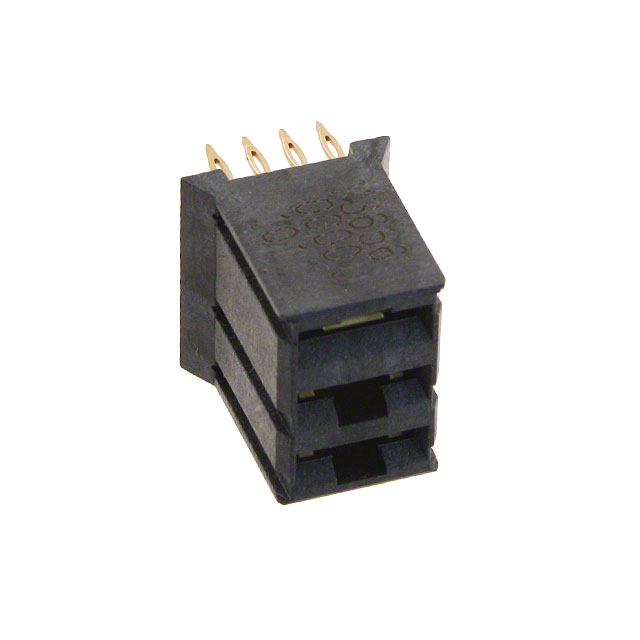

0736560000

Manufacturer :

Molex

Product Category :

Specialized

Contact Finish :

Gold

Mixed Contacts :

No

Length :

12.6mm

Option :

GENERAL PURPOSE

Number of Contacts :

3

Insulation Resistance :

1GOhm

Color :

Black

DIN Conformance :

No

UL Flammability Code :

94V-0

Contact Material :

Copper

Max Voltage Rating (AC) :

500V

Contact Layout, Typical :

3 Power

Mount :

Through Hole

Number of Columns :

1

Packaging :

Tube

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Termination :

Press-Fit

Pitch :

2mm

Connector Type :

Receptacle, Female Blade Sockets

Shell Material :

POLYETHYLENE

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Orientation :

Right Angle, Vertical

IEC Conformance :

No

Mounting Type :

Through Hole

Lead Free :

Lead Free

Operating Temperature :

-55°C~105°C

RoHS Status :

ROHS3 Compliant

Series :

HDM (High Density Metric) 73656

Empty Shell :

No

Factory Lead Time :

6 Weeks

Housing Material :

Thermoplastic

Connector Style :

HDM

Filter Feature :

No

Depth :

11.3mm

Pbfree Code :

yes

MIL Conformance :

No

Radiation Hardening :

No

Lead Pitch :

3.5mm

Number of Positions Loaded :

All

Gender :

Receptacle

Material Flammability Rating :

UL94 V-0

Contact Finish Thickness :

30.0μin 0.76μm

Flammability Rating :

UL94 V-0

Current Rating :

15A
