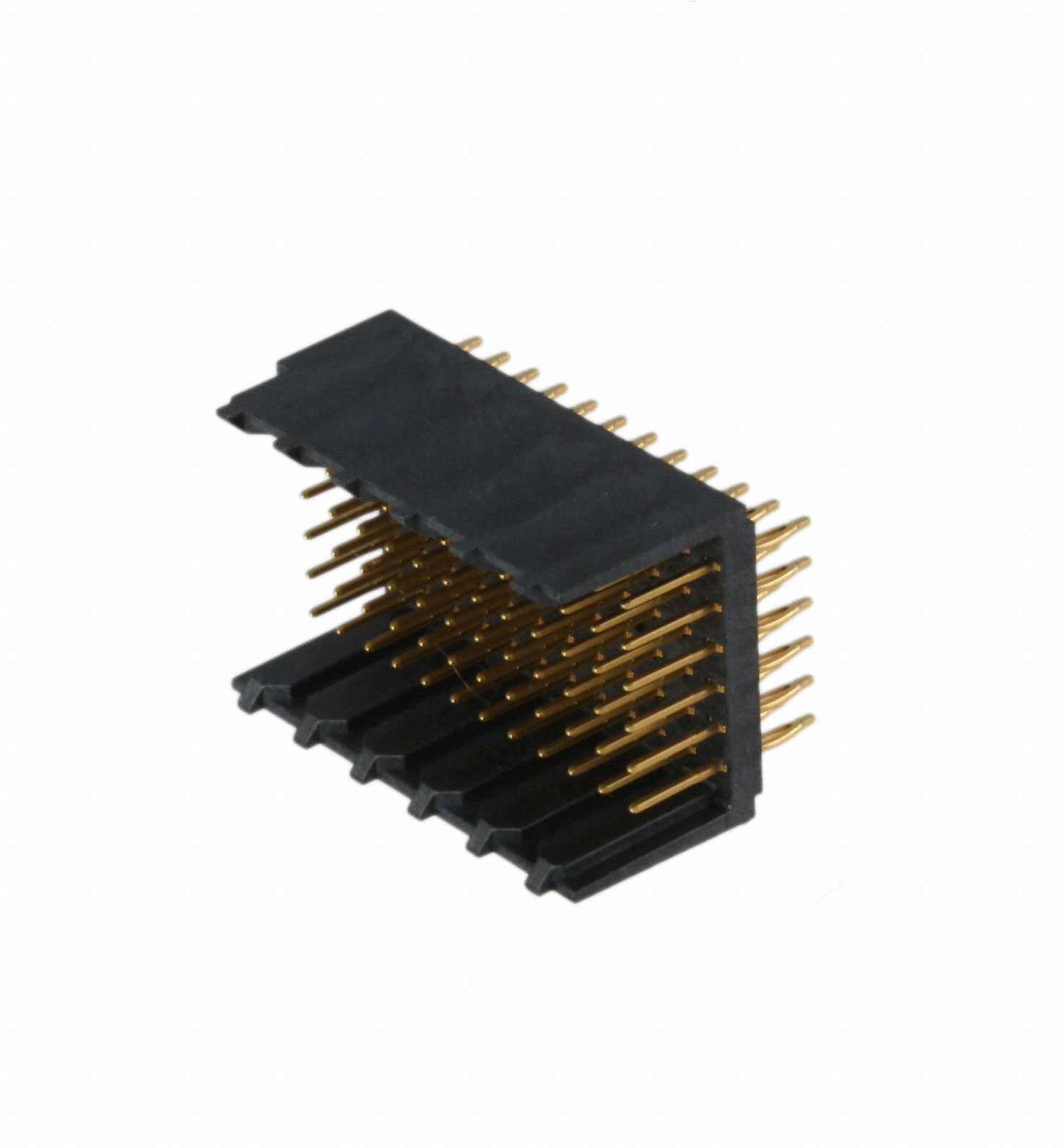

0736420000

Manufacturer :

Molex

Product Category :

Specialized

UL Flammability Code :

94V-0

Lead Pitch :

2mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mounting Type :

Through Hole

Connector Style :

HDM

Connector Type :

Header, Male Pins

Insulation Resistance :

1GOhm

RoHS Status :

ROHS3 Compliant

Max Voltage Rating (AC) :

250V

JESD-609 Code :

e4

Factory Lead Time :

4 Weeks

Mixed Contacts :

No

Orientation :

Straight, Right Angle, Vertical

ECCN Code :

EAR99

Contact Material :

Bronze

Housing Material :

Polymer

Operating Temperature :

-55°C~105°C

IEC Conformance :

No

Number of Circuits :

8

Termination :

Press-Fit

Contact Finish Thickness :

30.0μin 0.76μm

MIL Conformance :

No

Pitch :

0.079 2.00mm

Number of Rows :

6

Mount :

Through Hole

Gender :

Male

Series :

HDM (High Density Metric) 73642

Flammability Rating :

UL94 V-0

DIN Conformance :

No

Number of Columns :

12

Depth :

15.7mm

Current Rating :

1A

Option :

GENERAL PURPOSE

Number of Positions :

72

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Length :

23.84mm

Material Flammability Rating :

UL94 V-0

Total Number of Contacts :

72

Contact Resistance :

10MOhm

Filter Feature :

No

Color :

Black

Number of Positions Loaded :

All

Contact Finish :

Gold

Packaging :

Tube
