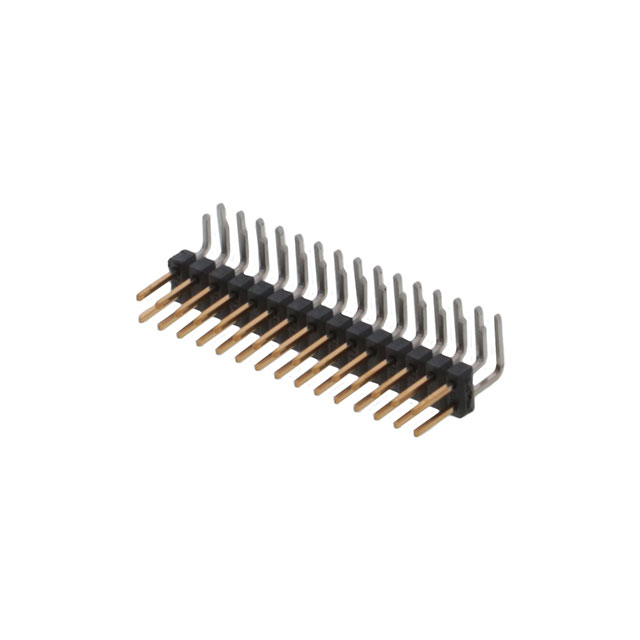

    Images are for reference only.

    Delivery：

    Payment：

    0717640130

    Share

    Or copy the link below:

    Mfr.Part #
    0717640130
    Manufacturer
    Molex
    Package / Case
    Datasheet
    Download
    Description
    CONN HEADER R/A 30POS 2.54MM
    Stock
    3,016
    In Stock ：
    3,016

    Request A Quote(RFQ)

    * Fullname:
    * Company:
    * E-Mail:
      Phone:
      Comment:
    * Quantity:
    Manufacturer :
    Molex
    Product Category :
    Headers, Male Pins
    Contact Finish - Mating :
    Gold
    Insulation Height :
    0.200 5.08mm
    Contact Finish Thickness - Post :
    74.8μin 1.90μm
    Insulation Color :
    Black
    Contact Material :
    COPPER ALLOY
    Number of Rows :
    2
    Shrouding :
    Unshrouded
    Packaging :
    Tube
    Pbfree Code :
    yes
    Number of Positions :
    30
    Contact Finish Thickness - Mating :
    15.0μin 0.38μm
    Contact Finish - Post :
    Tin
    Contact Type :
    Male Pin
    Fastening Type :
    Push-Pull
    Connector Type :
    Header, Breakaway
    Number of Positions Loaded :
    All
    Series :
    C-Grid 71764
    Moisture Sensitivity Level (MSL) :
    1 (Unlimited)
    Applications :
    Automotive, General Purpose, Lighting, Medical, Telecommunications
    Style :
    Board to Board or Cable
    Contact Shape :
    Square
    Row Spacing - Mating :
    0.100 (2.54mm)
    Pitch - Mating :
    0.100 2.54mm
    Contact Length - Mating :
    0.240 6.10mm
    Insulation Material :
    Thermoplastic
    Termination :
    Solder
    Factory Lead Time :
    5 Weeks
    RoHS Status :
    ROHS3 Compliant
    Contact Length - Post :
    0.110 2.79mm
    Material Flammability Rating :
    UL94 V-0
    Mounting Type :
    Through Hole, Right Angle
    Datasheets
    0717640130
    Introducing Headers, Male Pins Molex 0717640130 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type：Through Hole, Right Angle, 0717640130 pinout, 0717640130 datasheet PDF, 0717640130 amp .Beyond Headers, Male Pins Molex 0717640130 ,we also offer 3220-20-0100-00, 3020-26-0300-00, 3220-26-0300-00-TR, Our vast inventory has you covered. Contact us now for immediate solutions.

    Molex 0717640130


    C-Grid 71764 Series 2-Row Header, Breakaway Solder Copper Alloy Tube Through Hole, Right Angle Gold Thermoplastic 30-Position Board to Board or Cable 0.200 5.08mm Height

    0717640130 Overview


    This product is packaged in a Header, Breakaway cartonThis device's mounting type is Through Hole, Right Angle.It's packaged in a Tube case.C-Grid 71764 Series product.Automotive, General Purpose, Lighting, Medical, Telecommunications is one possible application.

    0717640130 Features


    C-Grid 71764 series


    0717640130 Applications


    There are a lot of Molex
    0717640130 Rectangular Connectors applications.


    • Embedded systems
    • Datacom
    • Communication
    • Medical technology
    • Military Technology
    • Measuring & Control Technology
    • Instrumentation
    • Automotive Electronics
    • Telecommunications
    • Data Technology
