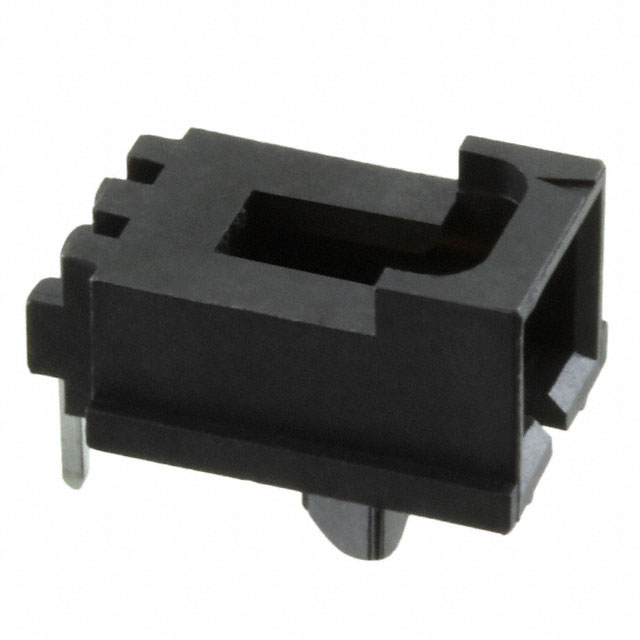

0705550071
Or copy the link below:
- Mfr.Part #
- 0705550071
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 2POS 2.54MM
- Stock
- 16,091
- In Stock ：
- 16,091
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Material Flammability Rating :
- UL94 V-0
- Insulation Material :
- Polyester, Glass Filled
- Contact Shape :
- Square
- Number of Positions Loaded :
- All
- Contact Finish - Mating :
- Gold
- JESD-609 Code :
- e3
- Mounting Type :
- Through Hole, Right Angle
- Connector Type :
- Header
- Pitch - Mating :
- 0.100 2.54mm
- Insulation Color :
- Black
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Voltage - Rated :
- 250V
- Contact Length - Post :
- 0.130 3.30mm
- Number of Rows :
- 1
- Mixed Contacts :
- No
- Fastening Type :
- Latch Holder
- Insulation Height :
- 0.215 5.45mm
- Style :
- Board to Cable/Wire
- IEC Conformance :
- No
- DIN Conformance :
- No
- Contact Length - Mating :
- 0.240 6.10mm
- Filter Feature :
- No
- UL Flammability Code :
- 94V-0
- Series :
- SL 70555
- Contact Type :
- Male Pin
- Contact Finish Thickness - Post :
- 74.8μin 1.90μm
- Additional Feature :
- POLARIZED, SHROUDED
- RoHS Status :
- ROHS3 Compliant
- Packaging :
- Tube
- Number of Positions :
- 2
- Shrouding :
- Shrouded - 4 Wall
- Factory Lead Time :
- 5 Weeks
- Contact Material :
- Phosphor Bronze
- Contact Finish - Post :
- Tin
- MIL Conformance :
- No
- Feature :
- Board Guide
- Applications :
- Automotive, General Purpose, Industrial, Medical
- Termination :
- Solder
- Operating Temperature :
- -40°C~105°C
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Datasheets
- 0705550071
0705550071 Documents
SL 70555 Series 1-Row Header Solder Phosphor Bronze Tube Through Hole, Right Angle Gold Polyester, Glass Filled 2-Position Board to Cable/Wire 0.215 5.45mm Height
0705550071 Overview
The packaging contains Header.There is a Through Hole, Right Angle mounting type for the device.This product is packaged in a case marked Tube.Product number SL 70555 belongs to the SL 70555 Series.Further, there are features such as POLARIZED, SHROUDED, to name only a few.In addition to Automotive, General Purpose, Industrial, Medical, there are other possible applications for the device.In many ways, it is more powerful due to its Board Guide feature.This device operates at a temperature of -40°C~105°C.
0705550071 Features
SL 70555 series
0705550071 Applications
There are a lot of Molex
0705550071 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
