    0705550009

    Share

    Or copy the link below:

    Mfr.Part #
    0705550009
    Manufacturer
    Molex
    Package / Case
    Datasheet
    Download
    Description

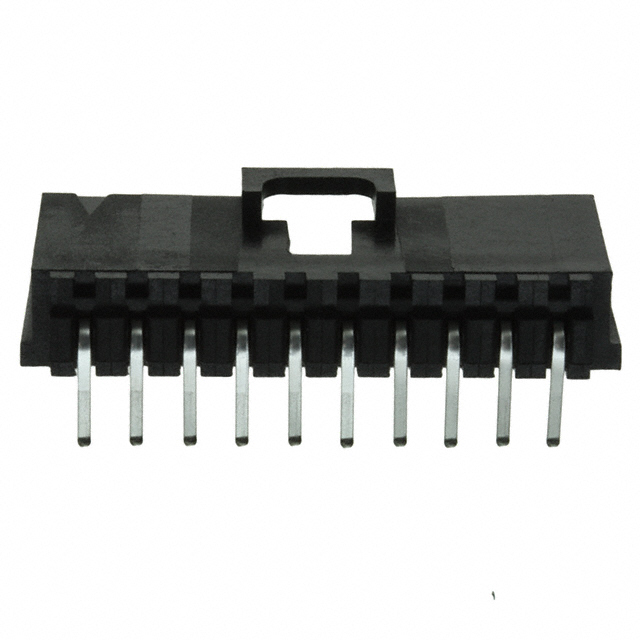

    CONN HEADER R/A 10POS 2.54MM
    Stock
    594
    In Stock ：
    594

    Request A Quote(RFQ)

    * Fullname:
    * Company:
    * E-Mail:
      Phone:
      Comment:
    * Quantity:
    Manufacturer :
    Molex
    Product Category :
    Headers, Male Pins
    Series :
    SL 70555
    Connector Type :
    Header
    Contact Shape :
    Square
    Moisture Sensitivity Level (MSL) :
    1 (Unlimited)
    Contact Finish Thickness - Mating :
    150.0μin 3.81μm
    Number of Positions :
    10
    Insulation Color :
    Black
    Feature :
    Board Guide
    Style :
    Board to Cable/Wire
    Packaging :
    Tube
    Insulation Material :
    Polyester, Glass Filled
    Contact Type :
    Male Pin
    Number of Rows :
    1
    Number of Positions Loaded :
    All
    Pitch - Mating :
    0.100 2.54mm
    Applications :
    Automotive, General Purpose, Industrial, Medical
    Shrouding :
    Shrouded - 4 Wall
    Insulation Height :
    0.215 5.45mm
    Contact Length - Post :
    0.130 3.30mm
    Contact Length - Mating :
    0.240 6.10mm
    Contact Material :
    Phosphor Bronze
    Termination :
    Solder
    RoHS Status :
    ROHS3 Compliant
    Contact Finish - Mating :
    Tin
    Voltage - Rated :
    250V
    Contact Finish Thickness - Post :
    150.0μin 3.81μm
    Material Flammability Rating :
    UL94 V-0
    Fastening Type :
    Latch Holder
    Factory Lead Time :
    6 Weeks
    Mounting Type :
    Through Hole, Right Angle
    Operating Temperature :
    -40°C~105°C
    Datasheets
    0705550009
    Introducing Headers, Male Pins Molex 0705550009 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type：Through Hole, Right Angle, Operating Temperature：-40°C~105°C, 0705550009 pinout, 0705550009 datasheet PDF, 0705550009 amp .Beyond Headers, Male Pins Molex 0705550009 ,we also offer 3220-20-0100-00, 3020-26-0300-00, 3220-26-0300-00-TR, Our vast inventory has you covered. Contact us now for immediate solutions.

    Molex 0705550009


    SL 70555 Series 1-Row Header Solder Phosphor Bronze Tube Through Hole, Right Angle Tin Polyester, Glass Filled 10-Position Board to Cable/Wire 0.215 5.45mm Height

    0705550009 Overview


    Header packaging is included.This device has a mounting type of Through Hole, Right Angle.We package the product with a Tube case.The product is part of the SL 70555 Series.You can use it for Automotive, General Purpose, Industrial, Medical.This feature makes it more powerful in a number of ways due to its Board Guide feature.This device runs at -40°C~105°C operating temperature.
