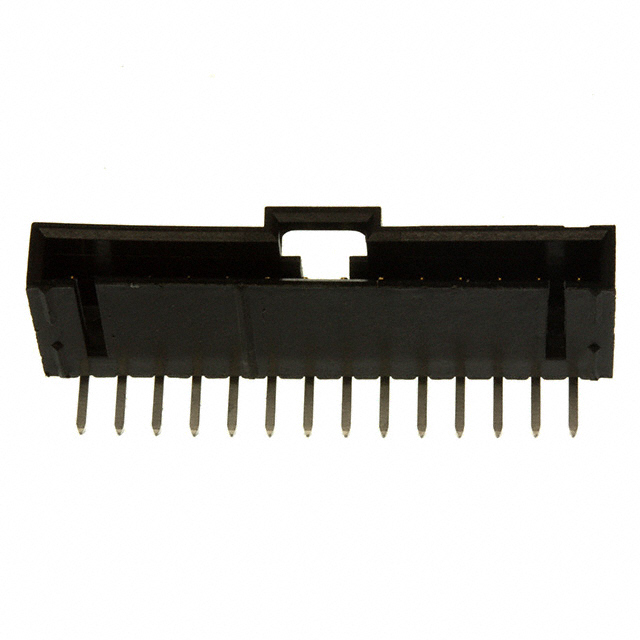

0705530013
Or copy the link below:
- Mfr.Part #
- 0705530013
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 14POS 2.54MM
- Stock
- 17
- In Stock ：
- 17
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Applications :
- Automotive, General Purpose, Industrial, Medical
- Number of Positions Loaded :
- All
- Contact Finish - Mating :
- Gold
- Contact Length - Mating :
- 0.240 6.10mm
- RoHS Status :
- ROHS3 Compliant
- Insulation Height :
- 0.215 5.45mm
- Insulation Color :
- Black
- Number of Rows :
- 1
- Contact Length - Post :
- 0.130 3.30mm
- Voltage - Rated :
- 250V
- Operating Temperature :
- -40°C~105°C
- Contact Finish - Post :
- Tin
- Contact Finish Thickness - Mating :
- 15.0μin 0.38μm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Packaging :
- Tube
- Factory Lead Time :
- 6 Weeks
- Contact Material :
- Phosphor Bronze
- Number of Positions :
- 14
- Style :
- Board to Cable/Wire
- Termination :
- Solder
- Connector Type :
- Header
- Pitch - Mating :
- 0.100 2.54mm
- Contact Shape :
- Square
- Contact Type :
- Male Pin
- Shrouding :
- Shrouded - 4 Wall
- Contact Finish Thickness - Post :
- 74.8μin 1.90μm
- Insulation Material :
- Polyester, Glass Filled
- Material Flammability Rating :
- UL94 V-0
- Mounting Type :
- Through Hole, Right Angle
- Fastening Type :
- Latch Holder
- Series :
- SL 70553
- Datasheets
- 0705530013
SL 70553 Series 1-Row Header Solder Phosphor Bronze Tube Through Hole, Right Angle Gold Polyester, Glass Filled 14-Position Board to Cable/Wire 0.215 5.45mm Height
0705530013 Overview
The product comes in a package of Header.Through Hole, Right Angle is the type of mounting for the device.To package the product, a Tube case is used.The product is a member of the SL 70553 Series.The device may be used for the following applications: Automotive, General Purpose, Industrial, Medical.It operates at an operating temperature of -40°C~105°C.
0705530013 Features
SL 70553 series
0705530013 Applications
There are a lot of Molex
0705530013 Rectangular Connectors applications.
