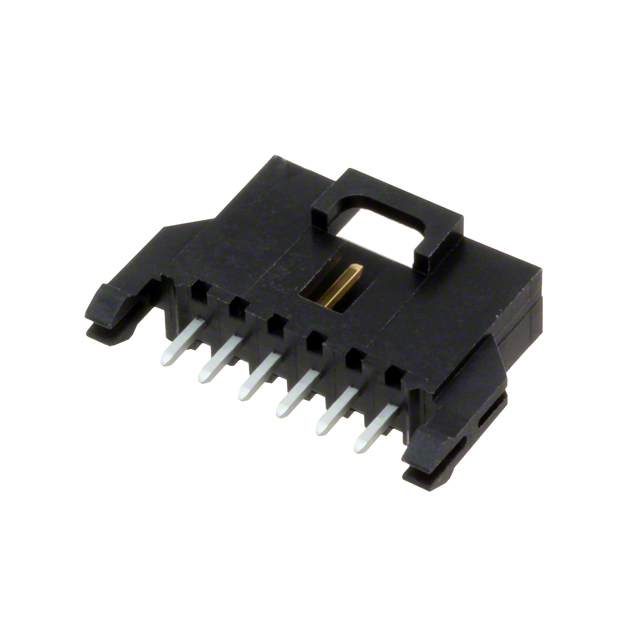

0705410040
Or copy the link below:
- Mfr.Part #
- 0705410040
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 6POS 2.54MM
- Stock
- 1,375
- In Stock ：
- 1,375
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Contact Finish - Mating :
- Gold
- UL Flammability Code :
- 94V-0
- Series :
- SL 70541
- DIN Conformance :
- No
- Contact Length - Post :
- 0.130 3.30mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- RoHS Status :
- ROHS3 Compliant
- Fastening Type :
- Latch Holder
- Contact Material :
- Phosphor Bronze
- Voltage - Rated :
- 250V
- Insulation Height :
- 0.465 11.80mm
- Packaging :
- Bulk
- Number of Positions Loaded :
- All
- Terminal Pitch :
- 2.54mm
- Connector Type :
- Header
- Contact Length - Mating :
- 0.240 6.10mm
- JESD-609 Code :
- e3
- Mixed Contacts :
- No
- Insulation Color :
- Black
- Overall Contact Length :
- 0.470 11.94mm
- Contact Finish - Post :
- Tin
- Contact Finish Thickness - Post :
- 74.8μin 1.90μm
- Termination :
- Solder
- Number of Rows :
- 1
- Contact Type :
- Male Pin
- Number of Positions :
- 6
- Contact Finish Thickness - Mating :
- 15.0μin 0.38μm
- MIL Conformance :
- No
- Filter Feature :
- No
- Style :
- Board to Cable/Wire
- Insulation Material :
- Polyester, Glass Filled
- IEC Conformance :
- No
- Operating Temperature :
- -40°C~105°C
- Factory Lead Time :
- 9 Weeks
- Feature :
- Board Lock
- Applications :
- Automotive, General Purpose, Industrial, Medical
- Material Flammability Rating :
- UL94 V-0
- Shrouding :
- Shrouded - 4 Wall
- Current Rating (Amps) :
- 3A
- Additional Feature :
- POLARIZED, SHROUDED
- Contact Shape :
- Square
- Pitch - Mating :
- 0.100 2.54mm
- ECCN Code :
- EAR99
- Mounting Type :
- Through Hole
- Datasheets
- 0705410040
SL 70541 Series 1-Row Header Solder Phosphor Bronze Bulk Through Hole Gold Polyester, Glass Filled 6-Position Board to Cable/Wire 0.465 11.80mm Height
0705410040 Overview
It comes in Header packaging.The device's mounting type is Through Hole.In order to package the product, a Bulk case is used.It belongs to the SL 70541 Series of products.In addition, there are other features such as POLARIZED, SHROUDED, to mention only a few.Automotive, General Purpose, Industrial, Medical is a possible application for the device.Its Board Lock feature renders it more powerful in many ways.The device runs in -40°C~105°C Operating Temperature.
0705410040 Features
SL 70541 series
0705410040 Applications
There are a lot of Molex
0705410040 Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
