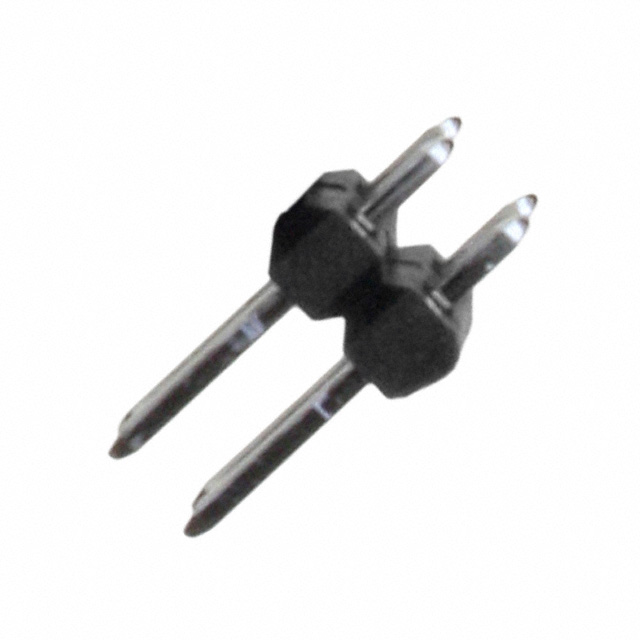

0702800590
Or copy the link below:
- Mfr.Part #
- 0702800590
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 4POS 2.54MM
- Stock
- 23,513
- In Stock ：
- 23,513
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Mount :
- Through Hole
- RoHS Status :
- ROHS3 Compliant
- Style :
- Board to Board or Cable
- Contact Shape :
- Square
- Max Voltage Rating (AC) :
- 250V
- Contact Finish Thickness - Mating :
- 150.0μin 3.81μm
- Applications :
- Automotive, General Purpose, Lighting, Medical, Telecommunications
- Contact Plating :
- Tin
- Contact Material :
- COPPER ALLOY
- Series :
- C-Grid 70280
- Material Flammability Rating :
- UL94 V-0
- Contact Type :
- Male Pin
- Number of Contacts :
- 4
- Contact Length - Mating :
- 0.240 6.10mm
- Contact Finish - Post :
- Tin
- Contact Resistance :
- 15mOhm
- Pitch - Mating :
- 0.100 2.54mm
- Contact Finish - Mating :
- Tin
- Insulation Color :
- Black
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Housing Color :
- Black
- Number of Positions Loaded :
- All
- Packaging :
- Bulk
- Length :
- 5.08mm
- Fastening Type :
- Push-Pull
- Min Operating Temperature :
- -40°C
- Shrouding :
- Unshrouded
- Number of Rows :
- 2
- Termination :
- Solder
- Pitch :
- 2.54mm
- Mounting Type :
- Through Hole
- Housing Material :
- Polymer
- Insulation Material :
- Liquid Crystal Polymer (LCP), Glass Filled
- Color :
- Black
- Contact Length - Post :
- 0.175 4.45mm
- Connector Type :
- Header, Breakaway
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Max Operating Temperature :
- 105°C
- Depth :
- 5.08mm
- Orientation :
- Straight
- Factory Lead Time :
- 8 Weeks
- Number of Positions :
- 4
- Overall Contact Length :
- 0.505 12.83mm
- Insulation Height :
- 0.090 2.29mm
- Datasheets
- 0702800590
0702800590 Documents
C-Grid 70280 Series 2-Row Header, Breakaway Solder Copper Alloy Bulk Through Hole Tin Liquid Crystal Polymer (LCP), Glass Filled 4-Position Board to Board or Cable 0.090 2.29mm Height
0702800590 Overview
It comes in Header, Breakaway packaging.The device's mounting type is Through Hole.In order to package the product, a Bulk case is used.It belongs to the C-Grid 70280 Series of products.It's best to use it when the temperature is below 105°C.This device must operate at a minimum temperature of -40°C.Automotive, General Purpose, Lighting, Medical, Telecommunications is a possible application for the device.The part is mounted by Through Hole.
0702800590 Features
C-Grid 70280 series
0702800590 Applications
There are a lot of Molex
0702800590 Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
