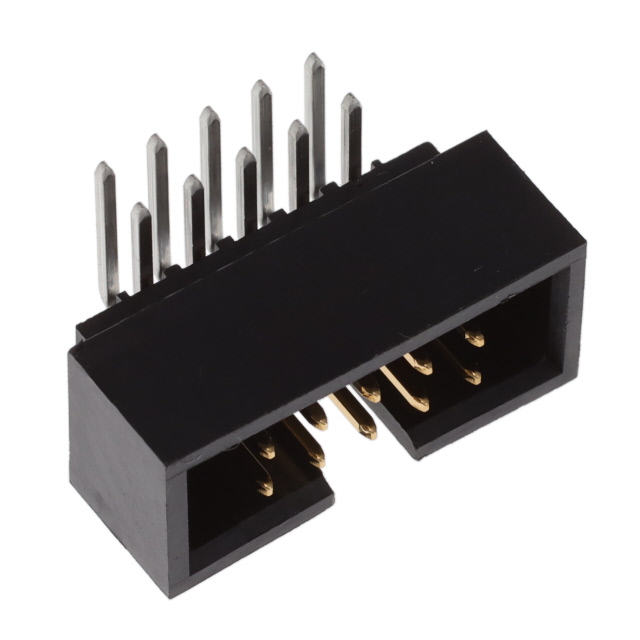

0702471052
Or copy the link below:
- Mfr.Part #
- 0702471052
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 10POS 2.54MM
- Stock
- 8,039
- In Stock ：
- 8,039
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Mount :
- Through Hole
- Glow Wire Compliant :
- Non-Compliant
- Number of Positions Loaded :
- All
- Contact Material :
- Phosphor Bronze
- Housing Color :
- Black
- Contact Finish - Post :
- Tin
- Length :
- 20.32mm
- Min Operating Temperature :
- -55°C
- Fastening Type :
- Push-Pull
- Contact Resistance :
- 15mOhm
- Contact Finish - Mating :
- Gold
- Connector Type :
- Header
- Material Flammability Rating :
- UL94 V-0
- Orientation :
- RIGHT ANGLE
- Material :
- Polyester
- Contact Length - Mating :
- 0.240 6.10mm
- Pitch - Mating :
- 0.100 2.54mm
- Style :
- Board to Board or Cable
- Number of Contacts :
- 10
- Flammability Rating :
- UL94 V-0
- Number of Rows :
- 2
- Radiation Hardening :
- No
- Shrouding :
- Shrouded - 4 Wall
- Applications :
- Automotive, General Purpose, Lighting, Medical, Telecommunications
- Width :
- 9.27mm
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Voltage - Rated DC :
- 250V
- Max Operating Temperature :
- 120°C
- Feature :
- Keying Slot
- Current Rating :
- 2.5A
- Mounting Type :
- Through Hole, Right Angle
- Contact Finish Thickness - Post :
- 74.8μin 1.90μm
- Termination :
- Solder
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Type :
- Male Pin
- Insulation Height :
- 0.350 8.89mm
- Max Voltage Rating (DC) :
- 250V
- Factory Lead Time :
- 11 Weeks
- ELV :
- Compliant
- Lead Free :
- Lead Free
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Contact Shape :
- Square
- Packaging :
- Bulk
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Contact Length - Post :
- 0.120 3.05mm
- REACH SVHC :
- No SVHC
- RoHS Status :
- ROHS3 Compliant
- Series :
- C-Grid 70247
- Gender :
- Male
- Datasheets
- 0702471052
C-Grid 70247 Series 2-Row Header Solder Phosphor Bronze Bulk Through Hole, Right Angle Gold Polybutylene Terephthalate (PBT), Glass Filled Board to Board or Cable 0.350 8.89mm Height
0702471052 Overview
This product is packaged in a Header box.Through Hole, Right Angle indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the C-Grid 70247 Series.Use it below 120°C.A minimum temperature of -55°C must be maintained for the operation of this device.There is the possibility of using the device for Automotive, General Purpose, Lighting, Medical, Telecommunications.In many ways, Keying Slot makes it more powerful.By Through Hole, the part is mounted.
0702471052 Features
C-Grid 70247 series
0702471052 Applications
There are a lot of Molex
0702471052 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
