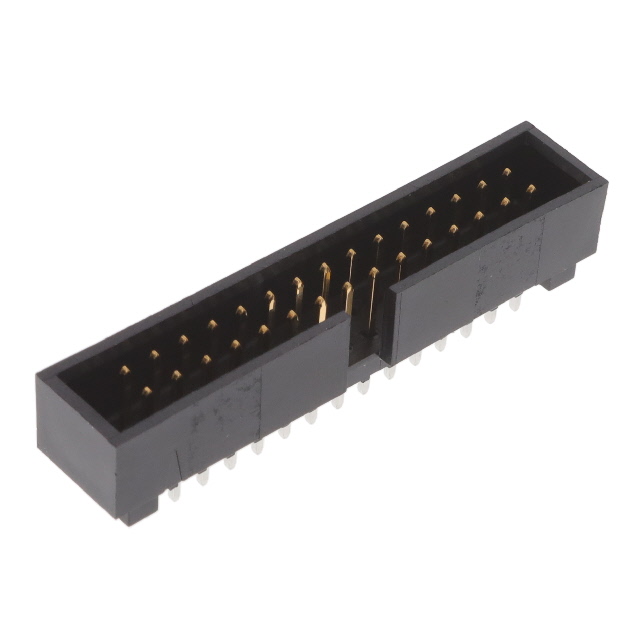

    0702463001

    Share

    Or copy the link below:

    Mfr.Part #
    0702463001
    Manufacturer
    Molex
    Package / Case
    Datasheet
    Download
    Description
    CONN HEADER VERT 30POS 2.54MM
    Stock
    2,018
    In Stock ：
    2,018

    Request A Quote(RFQ)

    * Fullname:
    * Company:
    * E-Mail:
      Phone:
      Comment:
    * Quantity:
    Manufacturer :
    Molex
    Product Category :
    Headers, Male Pins
    Termination :
    Solder
    Contact Shape :
    Square
    Contact Finish Thickness - Mating :
    15.0μin 0.38μm
    Contact Finish - Mating :
    Gold
    RoHS Status :
    ROHS3 Compliant
    Fastening Type :
    Push-Pull
    Number of Positions Loaded :
    All
    Insulation Color :
    Black
    Packaging :
    Tray
    Contact Material :
    Phosphor Bronze
    Row Spacing - Mating :
    0.100 (2.54mm)
    Applications :
    Automotive, General Purpose, Lighting, Medical, Telecommunications
    Contact Finish - Post :
    Tin
    Insulation Height :
    0.365 9.27mm
    Shrouding :
    Shrouded - 4 Wall
    Mounting Type :
    Through Hole
    Number of Rows :
    2
    Style :
    Board to Cable/Wire
    Contact Finish Thickness - Post :
    74.8μin 1.90μm
    Feature :
    Keying Slot
    Number of Positions :
    30
    Series :
    C-Grid 70246
    Contact Length - Mating :
    0.240 6.10mm
    Overall Contact Length :
    0.500 12.70mm
    Pitch - Mating :
    0.100 2.54mm
    Moisture Sensitivity Level (MSL) :
    1 (Unlimited)
    Insulation Material :
    Polybutylene Terephthalate (PBT), Glass Filled
    Material Flammability Rating :
    UL94 V-0
    Contact Type :
    Male Pin
    Factory Lead Time :
    15 Weeks
    Contact Length - Post :
    0.135 3.43mm
    Connector Type :
    Header
    Datasheets
    0702463001
    Introducing Headers, Male Pins Molex 0702463001 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type：Through Hole, 0702463001 pinout, 0702463001 datasheet PDF, 0702463001 amp .Beyond Headers, Male Pins Molex 0702463001 ,we also offer 3220-20-0100-00, 3020-26-0300-00, 3220-26-0300-00-TR, Our vast inventory has you covered. Contact us now for immediate solutions.

    Molex 0702463001


    C-Grid 70246 Series 2-Row Header Solder Phosphor Bronze Tray Through Hole Gold Polybutylene Terephthalate (PBT), Glass Filled 30-Position Board to Cable/Wire 0.365 9.27mm Height

    0702463001 Overview


    This product is packaged in a Header box.Through Hole indicates that the device is mounted.An Tray case is utilized for packaging the product.The product is a part of the C-Grid 70246 Series.There is the possibility of using the device for Automotive, General Purpose, Lighting, Medical, Telecommunications.In many ways, Keying Slot makes it more powerful.

    0702463001 Features


    C-Grid 70246 series


    0702463001 Applications


    There are a lot of Molex
    0702463001 Rectangular Connectors applications.


    • Embedded systems
    • Datacom
    • Communication
    • Medical technology
    • Military Technology
    • Measuring & Control Technology
    • Instrumentation
    • Automotive Electronics
    • Telecommunications
    • Data Technology
