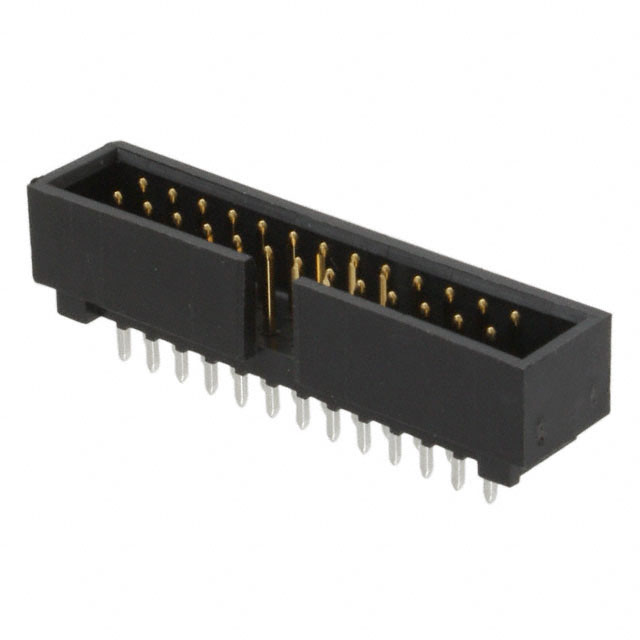

0702462601
Or copy the link below:
- Mfr.Part #
- 0702462601
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 26POS 2.54MM
- Stock
- 519
- In Stock ：
- 519
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Contact Finish Thickness - Mating :
- 15.0μin 0.38μm
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Insulation Color :
- Black
- IEC Conformance :
- No
- Packaging :
- Bulk
- Contact Finish - Mating :
- Gold
- Applications :
- Automotive, General Purpose, Lighting, Medical, Telecommunications
- Contact Material :
- Phosphor Bronze
- MIL Conformance :
- No
- Style :
- Board to Cable/Wire
- Pitch - Mating :
- 0.100 2.54mm
- Fastening Type :
- Push-Pull
- Filter Feature :
- No
- Contact Length - Post :
- 0.135 3.43mm
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Insulation Height :
- 0.365 9.27mm
- Overall Contact Length :
- 0.500 12.70mm
- Contact Finish Thickness - Post :
- 74.8μin 1.90μm
- Connector Type :
- Header
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- RoHS Status :
- ROHS3 Compliant
- Additional Feature :
- LOW PROFILE, SHROUDED
- UL Flammability Code :
- 94V-0
- Number of Positions Loaded :
- All
- Contact Finish - Post :
- Tin
- JESD-609 Code :
- e3
- Mounting Type :
- Through Hole
- Number of Positions :
- 26
- DIN Conformance :
- No
- Shrouding :
- Shrouded - 4 Wall
- Series :
- C-Grid 70246
- Mixed Contacts :
- No
- Contact Type :
- Male Pin
- Contact Shape :
- Square
- Contact Length - Mating :
- 0.240 6.10mm
- Number of Rows :
- 2
- Material Flammability Rating :
- UL94 V-0
- Termination :
- Solder
- Factory Lead Time :
- 12 Weeks
- Feature :
- Keying Slot
- Datasheets
- 0702462601
C-Grid 70246 Series 2-Row Header Solder Phosphor Bronze Bulk Through Hole Gold Polybutylene Terephthalate (PBT), Glass Filled 26-Position Board to Cable/Wire 0.365 9.27mm Height
0702462601 Overview
The product is packaged in Header.This device is mounted in the Through Hole position.It has been determined that a Bulk case is necessary to package the product.There is a product in the C-Grid 70246 Series.To name a few, there is also LOW PROFILE, SHROUDED.The device could be used for the following application: Automotive, General Purpose, Lighting, Medical, Telecommunications.There are a number of advantages to its Keying Slot feature.
0702462601 Features
C-Grid 70246 series
0702462601 Applications
There are a lot of Molex
0702462601 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
