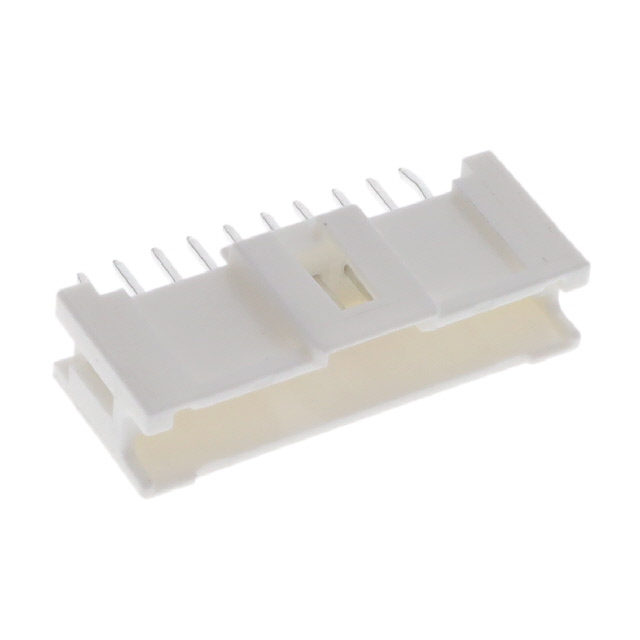

0559321030

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Contact Shape :

Square

Packaging :

Tray

Connector Type :

Header

Insulation Color :

Natural

Shrouding :

Shrouded - 4 Wall

Terminal Pitch :

2mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Positions Loaded :

All

Contact Length - Post :

0.126 3.20mm

Applications :

General Purpose, Industrial, Medical

Number of Rows :

1

Pbfree Code :

yes

Contact Type :

Male Pin

Style :

Board to Cable/Wire

Overall Contact Length :

0.360 9.15mm

Fastening Type :

Latch Holder

Contact Length - Mating :

0.144 3.66mm

IEC Conformance :

No

JESD-609 Code :

e3

Mixed Contacts :

No

Factory Lead Time :

20 Weeks

Insulation Height :

0.384 9.75mm

DIN Conformance :

No

Number of Positions :

10

RoHS Status :

ROHS3 Compliant

Pitch - Mating :

0.079 2.00mm

Filter Feature :

No

MIL Conformance :

No

Contact Material :

NOT SPECIFIED

Series :

MicroClasp 55932

Stack Height (Mating) :

13.2mm

Mounting Type :

Through Hole

Insulation Material :

Polybutylene Terephthalate (PBT)

Termination :

Kinked Pin, Solder

Contact Finish - Mating :

Tin
