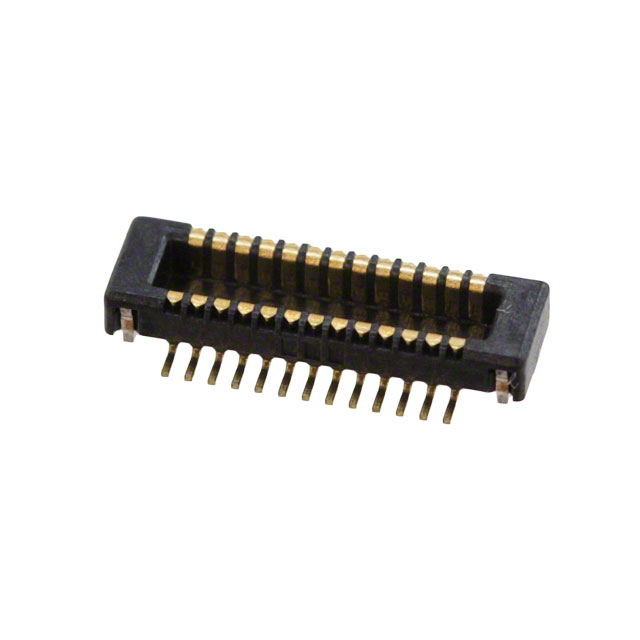

0559092674
Or copy the link below:
- Mfr.Part #
- 0559092674
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN PLUG 26POS SMD GOLD
- Stock
- 2,085
- In Stock ：
- 2,085
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Arrays, Edge Type, Mezzanine (Board to Board)
- Series :
- SlimStack 55909
- Feature :
- Solder Retention
- Total Number of Contacts :
- 26
- Mounting Type :
- Surface Mount
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Contact Finish Thickness :
- 8.00μin 0.203μm
- DIN Conformance :
- No
- Number of Rows :
- 2
- Option :
- GENERAL PURPOSE
- Contact Gender :
- Male
- Pbfree Code :
- yes
- MIL Conformance :
- No
- Filter Feature :
- No
- Pitch :
- 0.016 0.40mm
- IEC Conformance :
- No
- Packaging :
- Tape and Reel (TR)
- JESD-609 Code :
- e4
- Height Above Board :
- 0.045 1.14mm
- Connector Type :
- Plug, Outer Shroud Contacts
- Factory Lead Time :
- 9 Weeks
- Number of Positions :
- 26
- RoHS Status :
- ROHS3 Compliant
- Contact Material :
- BRASS/PHOSPHOR BRONZE
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Stack Height (Mating) :
- 1.5mm
- Contact Finish :
- Gold
- Additional Feature :
- SHROUDED
- Mixed Contacts :
- No
- Datasheets
- 0559092674
Plug, Outer Shroud Contacts Tape & Reel (TR) 2 Rows 0.016 0.40mm Surface Mount 26 Positions SlimStack 55909 Gold BRASS/PHOSPHOR BRONZE
0559092674 Overview
Currently, it is packaged in Plug, Outer Shroud Contacts.A Tape & Reel (TR) case is used to package the product.The mounting type of the device is Surface Mount.A product of the SlimStack 55909 Series, it belongs to the range of products of that series.The operating system can be configured to maintain the value of Solder Retention when it operates.Furthermore, there are other features available, such as SHROUDED, to name a few.
0559092674 Features
SlimStack 55909 series
Package / Case: Tape & Reel (TR)
Mounting Type:Surface Mount
Additional Feature: SHROUDED
0559092674 Applications
There are a lot of Molex
0559092674 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
