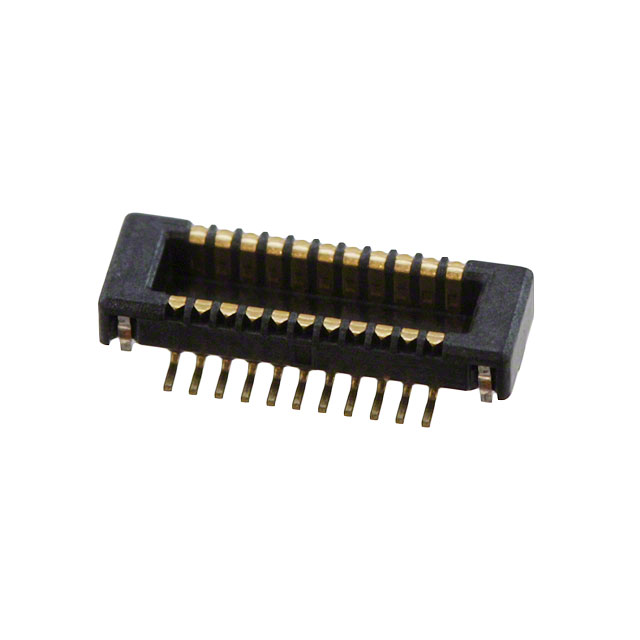

0559092274
Or copy the link below:
- Mfr.Part #
- 0559092274
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN PLUG 22POS SMD GOLD
- Stock
- 9,638
- In Stock ：
- 9,638
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Arrays, Edge Type, Mezzanine (Board to Board)
- Contact Material :
- BRASS/PHOSPHOR BRONZE
- Connector Type :
- Plug, Outer Shroud Contacts
- DIN Conformance :
- No
- Number of Rows :
- 2
- Packaging :
- Tape and Reel (TR)
- Pitch :
- 0.016 0.40mm
- Option :
- GENERAL PURPOSE
- Contact Gender :
- Male
- Stack Height (Mating) :
- 1.5mm
- IEC Conformance :
- No
- Height Above Board :
- 0.045 1.14mm
- RoHS Status :
- ROHS3 Compliant
- Contact Finish Thickness :
- 8.00μin 0.203μm
- Additional Feature :
- SHROUDED
- Number of Positions :
- 22
- Mounting Type :
- Surface Mount
- Factory Lead Time :
- 10 Weeks
- Filter Feature :
- No
- Total Number of Contacts :
- 22
- JESD-609 Code :
- e4
- Pbfree Code :
- yes
- Series :
- SlimStack 55909
- MIL Conformance :
- No
- Feature :
- Solder Retention
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Contact Finish :
- Gold
- Mixed Contacts :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Datasheets
- 0559092274
0559092274 Documents
Plug, Outer Shroud Contacts Tape & Reel (TR) 2 Rows 0.016 0.40mm Surface Mount 22 Positions SlimStack 55909 Gold BRASS/PHOSPHOR BRONZE
0559092274 Overview
Packaging is in the form of Plug, Outer Shroud Contacts.An orange Tape & Reel (TR) case is used to package the product.This device has a Surface Mount mounting type.Specifically, it is one of the products in the SlimStack 55909 Series.In operation, Solder Retention can be maintained as long as Solder Retention is unchanged.Other features include SHROUDED, to name just a few.
0559092274 Features
SlimStack 55909 series
Package / Case: Tape & Reel (TR)
Mounting Type:Surface Mount
Additional Feature: SHROUDED
0559092274 Applications
There are a lot of Molex
0559092274 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
