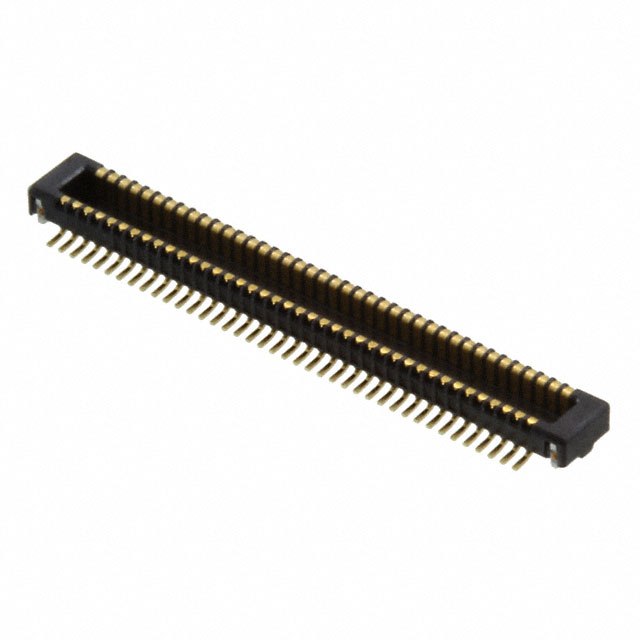

0559090874
Or copy the link below:
- Mfr.Part #
- 0559090874
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN PLUG 80POS SMD GOLD
- Stock
- 6,129
- In Stock ：
- 6,129
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Arrays, Edge Type, Mezzanine (Board to Board)
- Pbfree Code :
- yes
- JESD-609 Code :
- e4
- Feature :
- Solder Retention
- Stack Height (Mating) :
- 1.5mm
- Connector Type :
- Plug, Outer Shroud Contacts
- Contact Finish :
- Gold
- MIL Conformance :
- No
- Packaging :
- Tape and Reel (TR)
- Factory Lead Time :
- 10 Weeks
- Contact Material :
- BRASS/PHOSPHOR BRONZE
- Total Number of Contacts :
- 80
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Contact Finish Thickness :
- 8.00μin 0.203μm
- Number of Positions :
- 80
- RoHS Status :
- ROHS3 Compliant
- Additional Feature :
- SHROUDED
- Pitch :
- 0.016 0.40mm
- Mounting Type :
- Surface Mount
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Series :
- SlimStack 55909
- Contact Gender :
- Male
- Number of Rows :
- 2
- Mixed Contacts :
- No
- Height Above Board :
- 0.045 1.14mm
- Filter Feature :
- No
- IEC Conformance :
- No
- Option :
- GENERAL PURPOSE
- DIN Conformance :
- No
- Datasheets
- 0559090874
Plug, Outer Shroud Contacts Tape & Reel (TR) 2 Rows 0.016 0.40mm Surface Mount 80 Positions SlimStack 55909 Gold BRASS/PHOSPHOR BRONZE
0559090874 Overview
A Plug, Outer Shroud Contacts package is included with it.Packaging is performed using a Tape & Reel (TR) case.Its mounting type is Surface Mount.It is part of the SlimStack 55909 Series of products.In operation, Solder Retention may be maintained.Additionally, there are other features, such as SHROUDED.
0559090874 Features
SlimStack 55909 series
Package / Case: Tape & Reel (TR)
Mounting Type:Surface Mount
Additional Feature: SHROUDED
0559090874 Applications
There are a lot of Molex
0559090874 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
