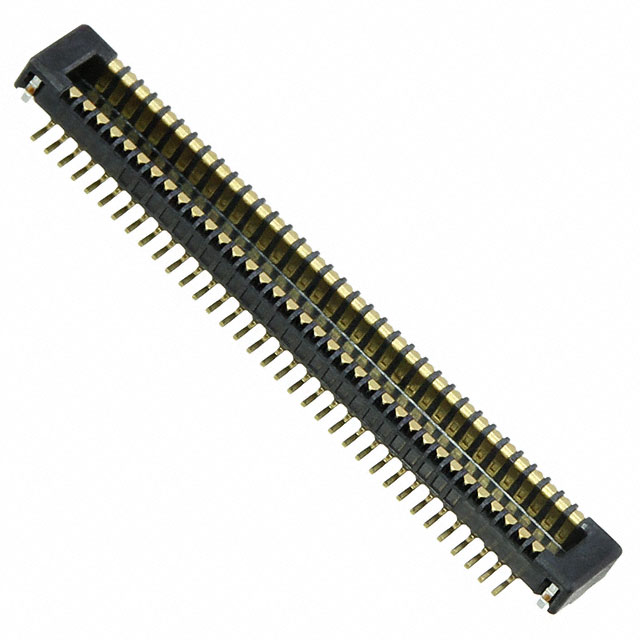

0559090774
Or copy the link below:
- Mfr.Part #
- 0559090774
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN PLUG 70POS SMD GOLD
- Stock
- 11,898
- In Stock ：
- 11,898
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Arrays, Edge Type, Mezzanine (Board to Board)
- Filter Feature :
- No
- IEC Conformance :
- No
- Contact Material :
- BRASS/PHOSPHOR BRONZE
- Pitch :
- 0.016 0.40mm
- Number of Rows :
- 2
- MIL Conformance :
- No
- Contact Finish :
- Gold
- Contact Gender :
- Male
- Option :
- GENERAL PURPOSE
- Additional Feature :
- SHROUDED
- Total Number of Contacts :
- 70
- Feature :
- Solder Retention
- Contact Finish Thickness :
- 8.00μin 0.203μm
- Number of Positions :
- 70
- Stack Height (Mating) :
- 1.5mm
- RoHS Status :
- ROHS3 Compliant
- DIN Conformance :
- No
- Connector Type :
- Plug, Outer Shroud Contacts
- Pbfree Code :
- yes
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Height Above Board :
- 0.045 1.14mm
- Mixed Contacts :
- No
- Factory Lead Time :
- 9 Weeks
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Series :
- SlimStack 55909
- Mounting Type :
- Surface Mount
- JESD-609 Code :
- e4
- Packaging :
- Tape and Reel (TR)
- Datasheets
- 0559090774
Plug, Outer Shroud Contacts Tape & Reel (TR) 2 Rows 0.016 0.40mm Surface Mount 70 Positions SlimStack 55909 Gold BRASS/PHOSPHOR BRONZE
0559090774 Overview
You'll get Plug, Outer Shroud Contacts packages.A Tape & Reel (TR) case is used for packaging.A Surface Mount mounting type is specified for the device.The product belongs to the SlimStack 55909 Series.It is possible to maintain Solder Retention when operating.Additionally, there are other features such as SHROUDED.
0559090774 Features
SlimStack 55909 series
Package / Case: Tape & Reel (TR)
Mounting Type:Surface Mount
Additional Feature: SHROUDED
0559090774 Applications
There are a lot of Molex
0559090774 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
