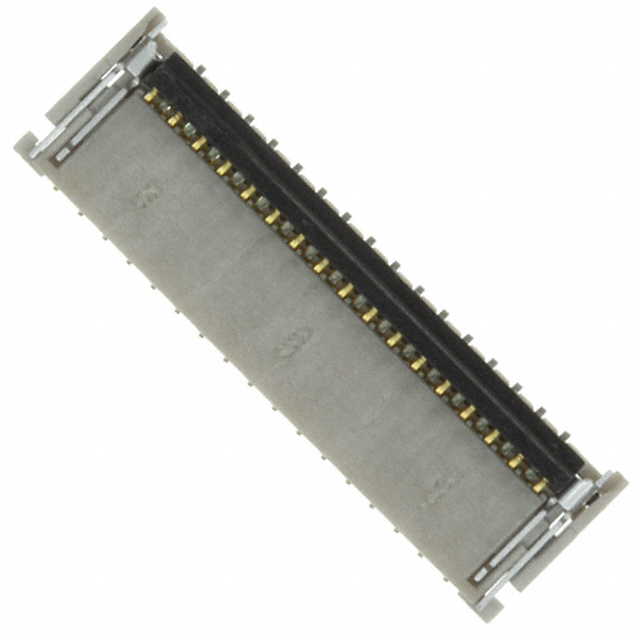

05022503391
Or copy the link below:
- Mfr.Part #
- 05022503391
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN FPC 33POS 0.30MM R/A
- Stock
- 37,981
- In Stock ：
- 37,981
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- Actuator Color :
- Black
- Pitch :
- 0.012 0.30mm
- Packaging :
- Tape and Reel (TR)
- Connector/Contact Type :
- Contacts, Top and Bottom
- RoHS Status :
- ROHS3 Compliant
- Termination :
- Solder
- Contact Finish :
- Gold
- Actuator Material :
- Polyphenylene Sulfide (PPS), Glass Filled
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Flat Flex Type :
- FPC
- Locking Feature :
- Flip Lock, Backlock
- Mounting Type :
- Surface Mount, Right Angle
- Housing Color :
- Natural
- FFC, FCB Thickness :
- 0.20mm
- Number of Positions :
- 33
- Housing Material :
- Liquid Crystal Polymer (LCP), Glass Filled
- Current Rating (Amps) :
- 0.2A
- Mating Cycles :
- 10
- Material Flammability Rating :
- UL94 V-0
- Cable End Type :
- Notched or Tabbed
- Height Above Board :
- 0.035 0.88mm
- Voltage - Rated :
- 50V
- Contact Material :
- COPPER ALLOY
- Series :
- BackFlip, Easy-On 502250
- Operating Temperature :
- -25°C~85°C
- Datasheets
- 05022503391
05022503391 Documents
BackFlip, Easy-On 502250 Series FPC Contacts, Top and Bottom Tape & Reel (TR) 0.012 0.30mm Solder 33 Positions Surface Mount, Right Angle Gold -25°C~85°C 0.2A
05022503391 Overview
There is a mounting type of Surface Mount, Right Angle for this device.It is necessary to use a Tape & Reel (TR) case for packaging the product.This product is part of the BackFlip, Easy-On 502250 Series.In this case, the device operates at -25°C~85°C Operating Temperature.
05022503391 Features
BackFlip, Easy-On 502250 series
05022503391 Applications
There are a lot of Molex
05022503391 FFC, FPC (Flat Flexible) Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
