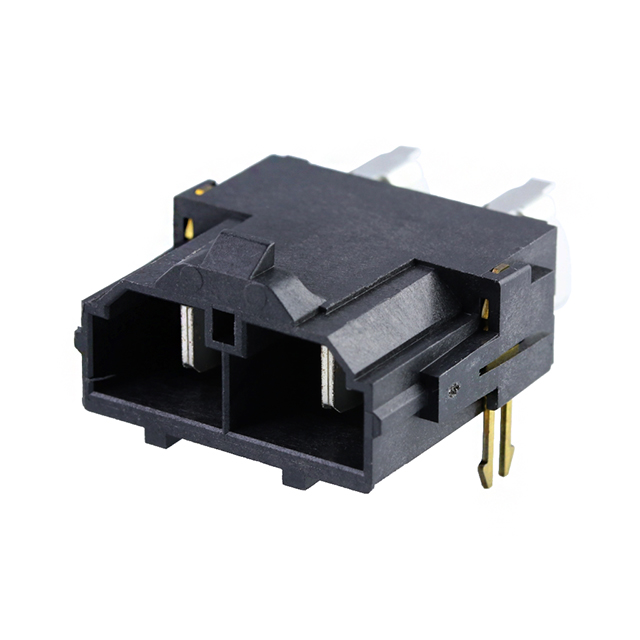

0469842231
Or copy the link below:
- Mfr.Part #
- 0469842231
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 2POS 10MM
- Stock
- 48,240
- In Stock ：
- 48,240
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Reliability :
- COMMERCIAL
- Number of Positions :
- 2
- Connector Type :
- Header
- Series :
- Mini-Fit Sr 46984
- Contact Type :
- Male Pin
- JESD-609 Code :
- e3
- Insulation Color :
- Black
- Number of Positions Loaded :
- All
- Mounting Type :
- Through Hole, Right Angle
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Contact Length - Post :
- 0.138 3.50mm
- Mixed Contacts :
- yes
- Contact Shape :
- RECTANGULAR
- Feature :
- Board Lock
- RoHS Status :
- ROHS3 Compliant
- Pbfree Code :
- yes
- Contact Finish - Post :
- Tin
- Shrouding :
- Shrouded - 4 Wall
- Contact Material :
- Copper
- Termination :
- Solder
- Pitch - Mating :
- 0.394 10.00mm
- Contact Finish - Mating :
- Gold
- Packaging :
- Tape and Reel (TR)
- Applications :
- Automotive, General Purpose, Industrial, Medical, Telecommunications
- Style :
- Board to Cable/Wire
- Number of Conductors :
- ONE
- Material Flammability Rating :
- UL94 V-0
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Fastening Type :
- Locking Ramp
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulation Material :
- Liquid Crystal Polymer (LCP), Glass Filled
- Factory Lead Time :
- 6 Weeks
- Insulation Height :
- 0.425 10.80mm
- Operating Temperature (Min) :
- -40°C
- Number of Rows :
- 1
- Durability :
- 30 Cycles
- Datasheets
- 0469842231
Mini-Fit Sr 46984 Series 1-Row Header Solder Copper Tape & Reel (TR) Through Hole, Right Angle Gold Liquid Crystal Polymer (LCP), Glass Filled 2-Position Board to Cable/Wire 0.425 10.80mm Height
0469842231 Overview
Packaging for this item is Header.There is a mounting type of Through Hole, Right Angle for this device.It is necessary to use a Tape & Reel (TR) case for packaging the product.This product is part of the Mini-Fit Sr 46984 Series.A possible application for the device is Automotive, General Purpose, Industrial, Medical, Telecommunications.In many ways, its Board Lock feature makes it more powerful.
0469842231 Features
Mini-Fit Sr 46984 series
0469842231 Applications
There are a lot of Molex
0469842231 Rectangular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
