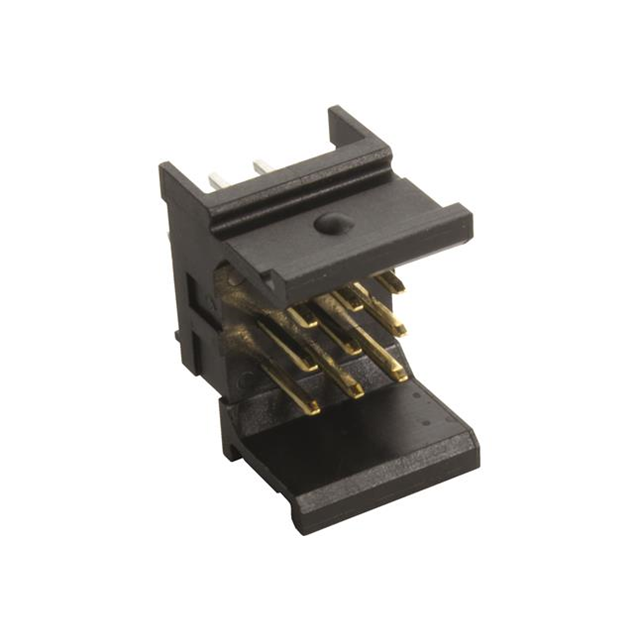

02539091103
Or copy the link below:
- Mfr.Part #
- 02539091103
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- 9 POSITION 2A STRAIGHT MALE
- Stock
- 99
- In Stock ：
- 99
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Headers, Male Pins
- Contact Material :
- COPPER ALLOY
- Accessory Type :
- -
- Body Orientation :
- Straight
- Contact Finish Thickness - Mating :
- -
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Mounting Type :
- Through Hole
- Contact Finish - Mating :
- Gold
- Mated Stacking Heights :
- -
- Connector Type :
- Header
- Ingress Protection :
- -
- Insulation Height :
- 0.494 (12.55mm)
- Style :
- Board to Cable/Wire
- Contact Length - Mating :
- -
- Termination Style :
- Solder Pin
- Operating Temperature :
- -55°C ~ 125°C
- Overall Contact Length :
- -
- Current Rating (Amps) :
- 2A
- Product :
- Headers
- Package :
- Bulk
- Contact Shape :
- Square
- Contact Length - Post :
- 0.189 (4.80mm)
- Contact Type :
- Male Pin
- Applications :
- -
- Termination :
- Solder
- Contact Plating :
- Gold
- Number of Contacts :
- 9
- Pitch :
- 2.54 mm
- Voltage Rating :
- -
- Series :
- Har-Modular
- Insulation Material :
- Polyamide (PA), Nylon
- Fastening Type :
- Push-Pull
- Contact Finish Thickness - Post :
- -
- Number of Rows :
- 3 Row
- Product Status :
- Active
- Number of Positions Loaded :
- All
- Material Flammability Rating :
- UL94 V-0
- Insulation Color :
- Black
- Pitch - Mating :
- 0.100 (2.54mm)
- Shrouding :
- Shrouded - 2 Wall
- Number of Positions :
- 9 Position
- Contact Finish - Post :
- Tin
- Features :
- -
- Datasheets
- 02539091103
02539091103 Documents
Har-Modular Series Header Solder 9 Position Positions Pitch: 2.54 mm -55°C ~ 125°C Through Hole
02539091103 Overview
The product comes in a package of Header.Through Hole is the type of mounting for the device.The product is a member of the Har-Modular Series.It operates at an operating temperature of -55°C ~ 125°C.
02539091103 Features
Har-Modular series
02539091103 Applications
There are a lot of HARTING
02539091103 Backplane Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
