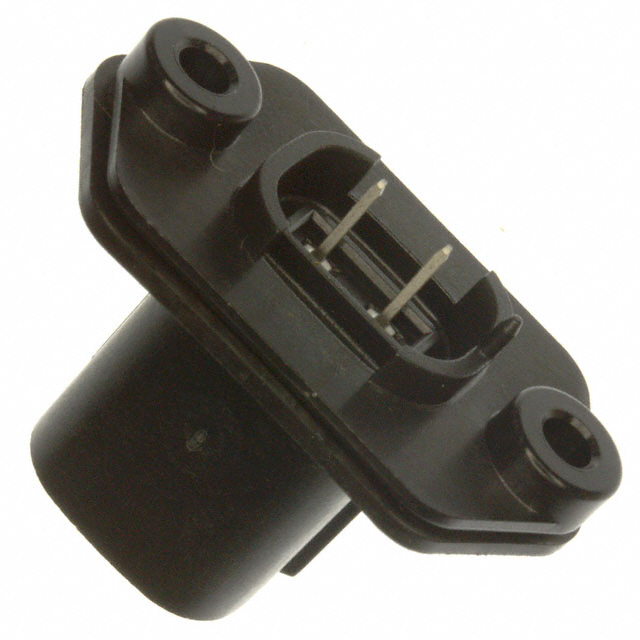

0194280009
Or copy the link below:
- Mfr.Part #
- 0194280009
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 2POS 5.84MM
- Stock
- 2,270
- In Stock ：
- 2,270
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Operating Temperature (Min) :
- -40°C
- Number of Conductors :
- ONE
- Reliability :
- COMMERCIAL
- Contact Shape :
- Square
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Pbfree Code :
- yes
- Number of Positions :
- 2
- Style :
- Board to Cable/Wire
- Material Flammability Rating :
- UL94 V-0
- Applications :
- Automotive, General Purpose, Industrial
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Number of Positions Loaded :
- All
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Insulation Color :
- Black
- Mixed Contacts :
- yes
- Contact Finish Thickness - Mating :
- 100.0μin 2.54μm
- Pitch - Mating :
- 0.230 5.84mm
- Feature :
- Board Guide, Mounting Flange
- Termination :
- Solder
- Series :
- MX150L 19428
- RoHS Status :
- ROHS3 Compliant
- Connector Type :
- Header
- Contact Finish - Mating :
- Tin
- Contact Type :
- Male Pin
- Ingress Protection :
- IP67 - Dust Tight, Waterproof
- JESD-609 Code :
- e3
- Packaging :
- Tray
- Number of Rows :
- 1
- Fastening Type :
- Locking Ramp
- Mounting Type :
- Panel Mount, Through Hole
- Shrouding :
- Shrouded - 4 Wall
- Insulation Height :
- 1.094 27.80mm
- Factory Lead Time :
- 18 Weeks
- Contact Length - Post :
- 0.130 3.30mm
- Contact Resistance :
- 30mOhm
- Reference Standard :
- UL
- Contact Material :
- COPPER ALLOY
- Datasheets
- 0194280009
0194280009 Documents
MX150L 19428 Series 1-Row Header Solder Copper Alloy Tray Panel Mount, Through Hole Tin Polybutylene Terephthalate (PBT), Glass Filled 2-Position Board to Cable/Wire 1.094 27.80mm Height
0194280009 Overview
The product comes in a package of Header.Panel Mount, Through Hole is the type of mounting for the device.To package the product, a Tray case is used.The product is a member of the MX150L 19428 Series.The device may be used for the following applications: Automotive, General Purpose, Industrial.It is more powerful in many ways due to its Board Guide, Mounting Flange feature.
0194280009 Features
MX150L 19428 series
0194280009 Applications
There are a lot of Molex
0194280009 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
