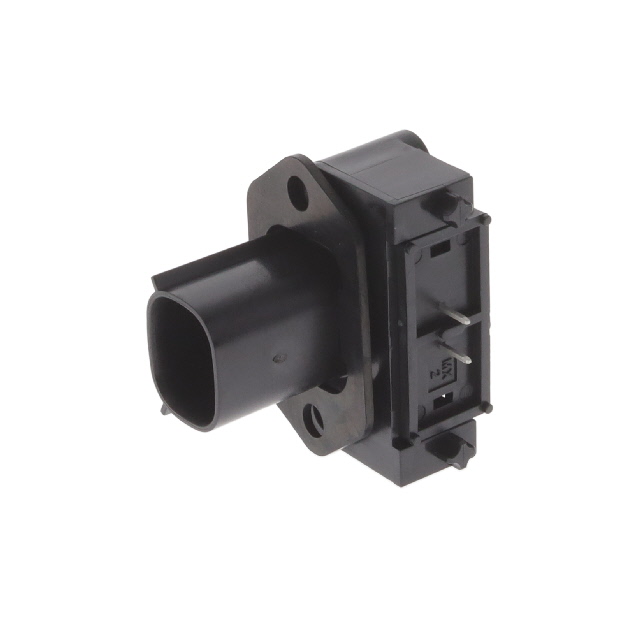

0194270040
Or copy the link below:
- Mfr.Part #
- 0194270040
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 2POS 5.84MM
- Stock
- 279
- In Stock ：
- 279
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Insulation Color :
- Black
- Material Flammability Rating :
- UL94 V-0
- Number of Positions :
- 2
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Finish Thickness - Mating :
- 100.0μin 2.54μm
- Contact Material :
- COPPER ALLOY
- Series :
- MX150L 19427
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Termination :
- Solder
- Connector Type :
- Header
- Style :
- Board to Cable/Wire
- Factory Lead Time :
- 13 Weeks
- Number of Rows :
- 1
- Contact Finish - Mating :
- Tin
- Shrouding :
- Shrouded - 4 Wall
- RoHS Status :
- ROHS3 Compliant
- Fastening Type :
- Locking Ramp
- Applications :
- Automotive, General Purpose, Industrial
- Contact Type :
- Male Pin
- Contact Shape :
- Square
- Mounting Type :
- Panel Mount, Through Hole, Right Angle
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Number of Positions Loaded :
- All
- Contact Length - Post :
- 0.134 3.40mm
- Pitch - Mating :
- 0.230 5.84mm
- Feature :
- Board Guide
- Insulation Height :
- 1.147 29.13mm
- Packaging :
- Tray
- Datasheets
- 0194270040
MX150L 19427 Series 1-Row Header Solder Copper Alloy Tray Panel Mount, Through Hole, Right Angle Tin Polybutylene Terephthalate (PBT), Glass Filled 2-Position Board to Cable/Wire 1.147 29.13mm Height
0194270040 Overview
The product comes in a package of Header.Panel Mount, Through Hole, Right Angle is the mount type.Tray cases are used to package the product.This product is in the MX150L 19427 Series.There's an application for the device called Automotive, General Purpose, Industrial.As a result of its Board Guide feature, it possesses a great deal of power.
0194270040 Features
MX150L 19427 series
0194270040 Applications
There are a lot of Molex
0194270040 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
