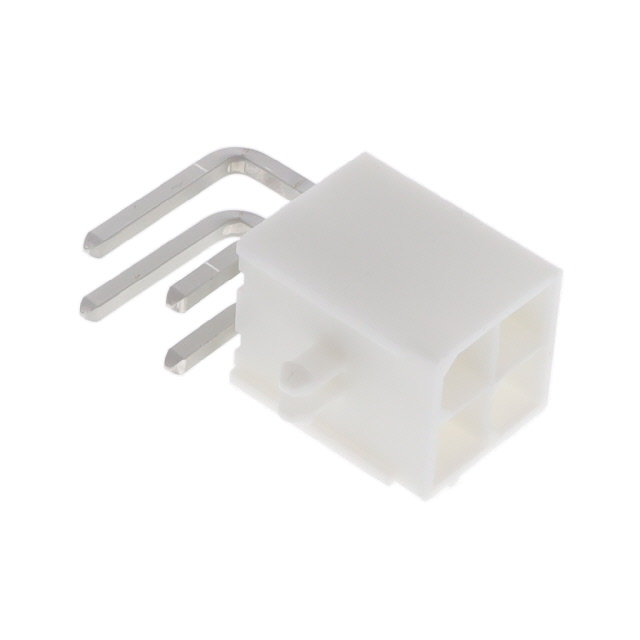

    Images are for reference only.

    Delivery：

    Payment：

    0050361768

    Share

    Or copy the link below:

    Mfr.Part #
    0050361768
    Manufacturer
    Molex
    Package / Case
    Datasheet
    Download
    Description
    CONN HEADER R/A 4POS 4.2MM
    Stock
    1,997
    In Stock ：
    1,997

    Request A Quote(RFQ)

    * Fullname:
    * Company:
    * E-Mail:
      Phone:
      Comment:
    * Quantity:
    Manufacturer :
    Molex
    Product Category :
    Headers, Male Pins
    Feature :
    Board Lock
    Contact Length - Post :
    0.142 3.60mm
    Insulation Height :
    0.378 9.60mm
    Contact Finish Thickness - Post :
    100.0μin 2.54μm
    Shrouding :
    Shrouded - 4 Wall
    Pitch - Mating :
    0.165 4.20mm
    Style :
    Board to Cable/Wire
    Insulation Color :
    Natural
    Contact Finish Thickness - Mating :
    100.0μin 2.54μm
    RoHS Status :
    ROHS3 Compliant
    Fastening Type :
    Locking Ramp
    Number of Positions :
    4
    Applications :
    General Purpose, Industrial, Telecommunications
    Contact Type :
    Male Pin
    Termination :
    Solder
    Moisture Sensitivity Level (MSL) :
    1 (Unlimited)
    Packaging :
    Tray
    Series :
    Mini-Fit Jr 5569
    Row Spacing - Mating :
    0.165 (4.20mm)
    Insulation Material :
    Polyamide (PA66), Nylon 6/6
    Number of Rows :
    2
    Contact Finish - Mating :
    Tin
    Material Flammability Rating :
    UL94 V-0
    Number of Positions Loaded :
    All
    Contact Material :
    Brass
    Connector Type :
    Header
    Mounting Type :
    Through Hole, Right Angle
    Factory Lead Time :
    10 Weeks
    Contact Shape :
    Square
    Datasheets
    0050361768
    Introducing Headers, Male Pins Molex 0050361768 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type：Through Hole, Right Angle, 0050361768 pinout, 0050361768 datasheet PDF, 0050361768 amp .Beyond Headers, Male Pins Molex 0050361768 ,we also offer 3220-20-0100-00, 3020-26-0300-00, 3220-26-0300-00-TR, Our vast inventory has you covered. Contact us now for immediate solutions.

    Molex 0050361768


    Mini-Fit Jr 5569 Series 2-Row Header Solder Brass Tray Through Hole, Right Angle Tin Polyamide (PA66), Nylon 6/6 4-Position Board to Cable/Wire 0.378 9.60mm Height

    0050361768 Overview


    This product is packaged in a Header carton.Through Hole, Right Angle is the mounting type for the device.The product is packaged in a Tray case.It's part of the Mini-Fit Jr 5569 Series.An application for the device could be General Purpose, Industrial, Telecommunications.Many aspects of its Board Lock feature increase its effectiveness.

    0050361768 Features


    Mini-Fit Jr 5569 series


    0050361768 Applications


    There are a lot of Molex
    0050361768 Rectangular Connectors applications.


    • Industrial Automation
    • Transportation
    • Embedded systems
    • Datacom
    • Communication
    • Medical technology
    • Military Technology
    • Measuring & Control Technology
    • Instrumentation
    • Automotive Electronics
