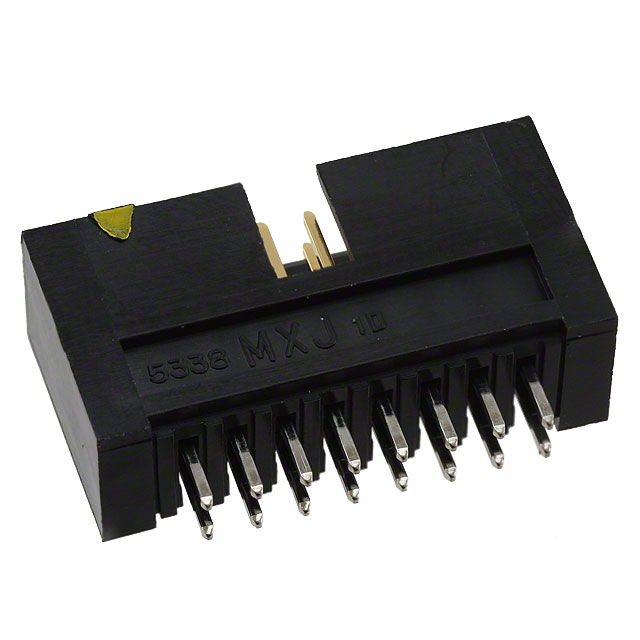

0039536164
Or copy the link below:
- Mfr.Part #
- 0039536164
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 16POS 2.54MM
- Stock
- 23,328
- In Stock ：
- 23,328
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Connector Type :
- Header
- Material Flammability Rating :
- UL94 V-0
- Option :
- GENERAL PURPOSE
- Contact Length - Post :
- 0.138 3.50mm
- Contact Shape :
- Square
- Contact Finish Thickness - Post :
- 39.4μin 1.00μm
- JESD-609 Code :
- e3
- Contact Finish - Post :
- Tin
- Packaging :
- Tray
- Overall Contact Length :
- 0.657 16.70mm
- Mixed Contacts :
- No
- DIN Conformance :
- No
- Number of Rows :
- 2
- UL Flammability Code :
- 94V-0
- Contact Type :
- Male Pin
- Shrouding :
- Shrouded - 4 Wall
- MIL Conformance :
- No
- Insulation Height :
- 0.551 14.00mm
- Contact Length - Mating :
- 0.228 5.80mm
- Series :
- 5332
- HTS Code :
- 8536.69.40.40
- IEC Conformance :
- No
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Style :
- Board to Cable/Wire
- Termination :
- Solder
- Pitch - Mating :
- 0.100 2.54mm
- Mounting Type :
- Through Hole
- Reach Compliance Code :
- Unknown
- RoHS Status :
- ROHS3 Compliant
- Number of Positions :
- 16
- Contact Finish - Mating :
- Gold
- Number of Positions Loaded :
- All
- Feature :
- Keying Slot
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Filter Feature :
- No
- Contact Finish Thickness - Mating :
- 3.90μin 0.099μm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Material :
- Brass
- ECCN Code :
- EAR99
- Fastening Type :
- Push-Pull
- Insulation Color :
- Black
- Datasheets
- 0039536164
0039536164 Documents
5332 Series 2-Row Header Solder Brass Tray Through Hole Gold Polybutylene Terephthalate (PBT), Glass Filled 16-Position Board to Cable/Wire 0.551 14.00mm Height
0039536164 Overview
The packaging contains Header.There is a Through Hole mounting type for the device.This product is packaged in a case marked Tray.Product number 5332 belongs to the 5332 Series.In many ways, it is more powerful due to its Keying Slot feature.
0039536164 Features
5332 series
0039536164 Applications
There are a lot of Molex
0039536164 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
