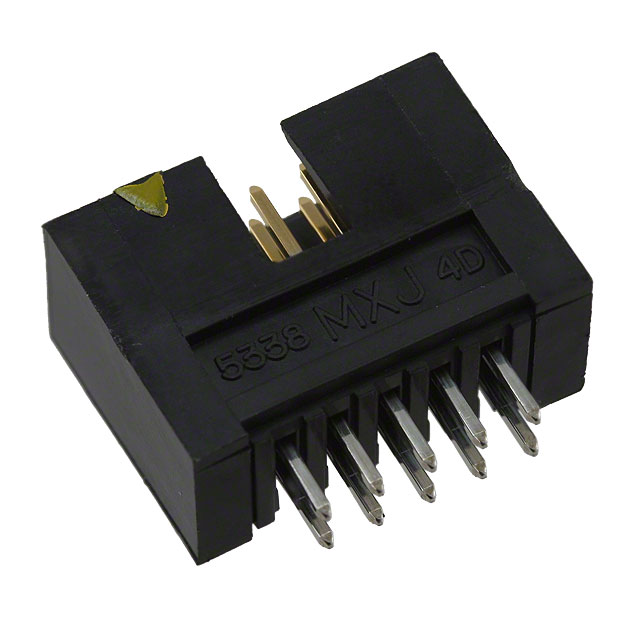

0039536104
Or copy the link below:
- Mfr.Part #
- 0039536104
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 10POS 2.54MM
- Stock
- 22,924
- In Stock ：
- 22,924
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Contact Finish Thickness - Mating :
- 3.90μin 0.099μm
- Depth :
- 8.5mm
- Connector Type :
- Header
- Shrouding :
- Shrouded - 4 Wall
- Mounting Type :
- Through Hole
- Overall Contact Length :
- 0.657 16.70mm
- Contact Length - Post :
- 0.138 3.50mm
- RoHS Status :
- ROHS3 Compliant
- Series :
- 5332
- Termination :
- Solder
- Pitch - Mating :
- 0.100 2.54mm
- Color :
- Black
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Housing Material :
- Polybutylene
- Contact Length - Mating :
- 0.228 5.80mm
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Contact Type :
- Male Pin
- Orientation :
- Straight
- Insulation Color :
- Black
- Contact Finish Thickness - Post :
- 39.4μin 1.00μm
- Number of Positions Loaded :
- All
- Contact Plating :
- Gold
- Housing Color :
- Black
- Packaging :
- Tray
- Contact Shape :
- Square
- Feature :
- Keying Slot
- Style :
- Board to Cable/Wire
- Min Operating Temperature :
- -40°C
- Contact Material :
- Brass
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Fastening Type :
- Push-Pull
- Contact Finish - Mating :
- Gold
- Pitch :
- 2.54mm
- Mount :
- Through Hole
- Contact Resistance :
- 40mOhm
- Material Flammability Rating :
- UL94 V-0
- Gender :
- Male
- Number of Contacts :
- 10
- Length :
- 19.66mm
- Contact Finish - Post :
- Tin
- Number of Rows :
- 2
- Insulation Height :
- 0.551 14.00mm
- Max Operating Temperature :
- 105°C
- Number of Positions :
- 10
- Datasheets
- 0039536104
0039536104 Documents
5332 Series 2-Row Header Solder Brass Tray Through Hole Gold Polybutylene Terephthalate (PBT), Glass Filled 10-Position Board to Cable/Wire 0.551 14.00mm Height
0039536104 Overview
Currently, it is packaged in Header.The mounting type of the device is Through Hole.A Tray case is used to package the product.A product of the 5332 Series, it belongs to the range of products of that series.A temperature below 105°C is best for using it.The device must run at -40°C degrees.A number of features make the Keying Slot feature more powerful.Through Hole represents the mounting point for the part.
0039536104 Features
5332 series
0039536104 Applications
There are a lot of Molex
0039536104 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
