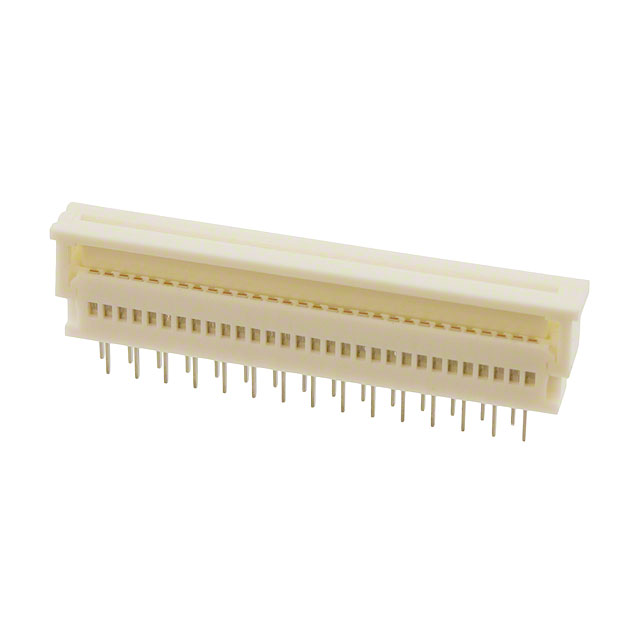

0039532305
Or copy the link below:
- Mfr.Part #
- 0039532305
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN FFC VERT 30POS 1.25MM PCB
- Stock
- 6,097
- In Stock ：
- 6,097
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- Height Above Board :
- 0.295 7.50mm
- MIL Conformance :
- No
- Factory Lead Time :
- 15 Weeks
- Number of Rows :
- 1
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Voltage - Rated :
- 200V
- Actuator Material :
- Polybutylene Terephthalate (PBT), Polyester
- Feature :
- Zero Insertion Force (ZIF)
- FFC, FCB Thickness :
- 0.30mm
- Flat Flex Type :
- FFC, FPC
- Pbfree Code :
- yes
- JESD-609 Code :
- e6
- Connector Type :
- FFC/FPC CONNECTOR
- Operating Temperature :
- -20°C~80°C
- Cable End Type :
- Straight
- Pitch :
- 0.049 1.25mm
- Mounting Type :
- Through Hole
- Option :
- GENERAL PURPOSE
- Mixed Contacts :
- No
- Termination :
- Solder
- Number of Positions :
- 30
- Housing Material :
- Polybutylene Terephthalate (PBT), Polyester
- UL Flammability Code :
- 94V-0
- RoHS Status :
- ROHS3 Compliant
- Connector/Contact Type :
- Contacts, Vertical - 1 Sided
- Contact Finish :
- TIN BISMUTH
- Contact Material :
- Phosphor Bronze
- Current Rating (Amps) :
- 1A
- Contact Gender :
- FEMALE
- Filter Feature :
- No
- Contact Finish Thickness :
- 39.4μin 1.00μm
- Locking Feature :
- Slide Lock
- IEC Conformance :
- No
- DIN Conformance :
- No
- Material Flammability Rating :
- UL94 V-0
- Packaging :
- Tray
- Total Number of Contacts :
- 30
- Series :
- 5597
- Datasheets
- 0039532305
0039532305 Documents
5597 Series FFC, FPC Contacts, Vertical - 1 Sided Tray 0.049 1.25mm Solder 30 Positions Through Hole Tin Bismuth -20°C~80°C 1A
0039532305 Overview
It comes in FFC/FPC CONNECTOR packaging.There is a mounting type of Through Hole for this device.It is necessary to use a Tray case for packaging the product.This product is part of the 5597 Series.In many ways, its Zero Insertion Force (ZIF) feature makes it more powerful.In this case, the device operates at -20°C~80°C Operating Temperature.
0039532305 Features
5597 series
0039532305 Applications
There are a lot of Molex
0039532305 FFC, FPC (Flat Flexible) Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
