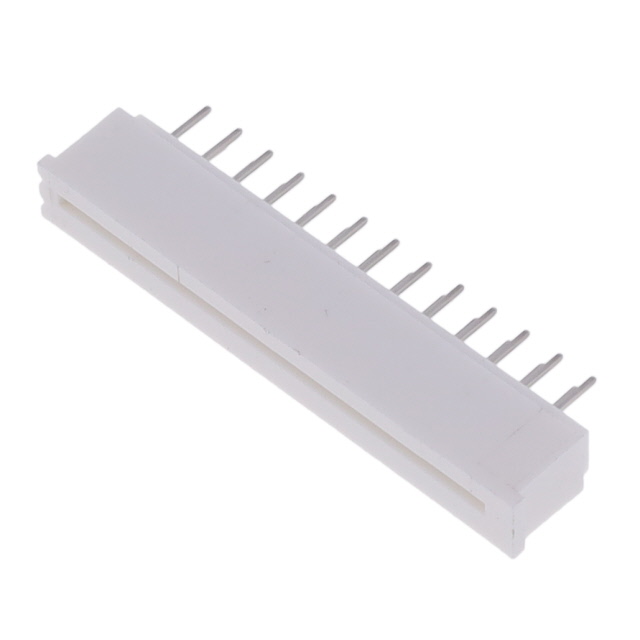

0039532255
Or copy the link below:
- Mfr.Part #
- 0039532255
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN FFC VERT 25POS 1.25MM PCB
- Stock
- 342
- In Stock ：
- 342
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- Pbfree Code :
- yes
- Mixed Contacts :
- No
- Number of Rows :
- 1
- Flat Flex Type :
- FFC, FPC
- Current Rating (Amps) :
- 1A
- Height Above Board :
- 0.295 7.50mm
- Factory Lead Time :
- 37 Weeks
- Mating Cycles :
- 30
- Operating Temperature :
- -20°C~80°C
- JESD-609 Code :
- e6
- Housing Material :
- Polybutylene Terephthalate (PBT), Polyester
- Feature :
- Zero Insertion Force (ZIF)
- Total Number of Contacts :
- 25
- RoHS Status :
- ROHS3 Compliant
- Option :
- GENERAL PURPOSE
- Mounting Type :
- Through Hole
- UL Flammability Code :
- 94V-0
- Cable End Type :
- Straight
- Locking Feature :
- Slide Lock
- Contact Finish :
- TIN BISMUTH
- IEC Conformance :
- No
- Contact Finish Thickness :
- 39.4μin 1.00μm
- Number of Positions :
- 25
- Series :
- 5597
- Pitch :
- 0.049 1.25mm
- Termination :
- Solder
- Material Flammability Rating :
- UL94 V-0
- Connector Type :
- FFC/FPC CONNECTOR
- Packaging :
- Tray
- MIL Conformance :
- No
- DIN Conformance :
- No
- Contact Gender :
- FEMALE
- Actuator Material :
- Polybutylene Terephthalate (PBT), Polyester
- Connector/Contact Type :
- Contacts, Vertical - 1 Sided
- FFC, FCB Thickness :
- 0.30mm
- Contact Material :
- Phosphor Bronze
- Filter Feature :
- No
- Voltage - Rated :
- 200V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Datasheets
- 0039532255
0039532255 Documents
5597 Series FFC, FPC Contacts, Vertical - 1 Sided Tray 0.049 1.25mm Solder 25 Positions Through Hole Tin Bismuth -20°C~80°C 1A
0039532255 Overview
The connector type FFC/FPC CONNECTOR refers to the connector type.The device's mounting type is Through Hole.In order to package the product, a Tray case is used.It belongs to the 5597 Series of products.Its Zero Insertion Force (ZIF) feature renders it more powerful in many ways.The device runs in -20°C~80°C Operating Temperature.
0039532255 Features
5597 series
0039532255 Applications
There are a lot of Molex
0039532255 FFC, FPC (Flat Flexible) Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
