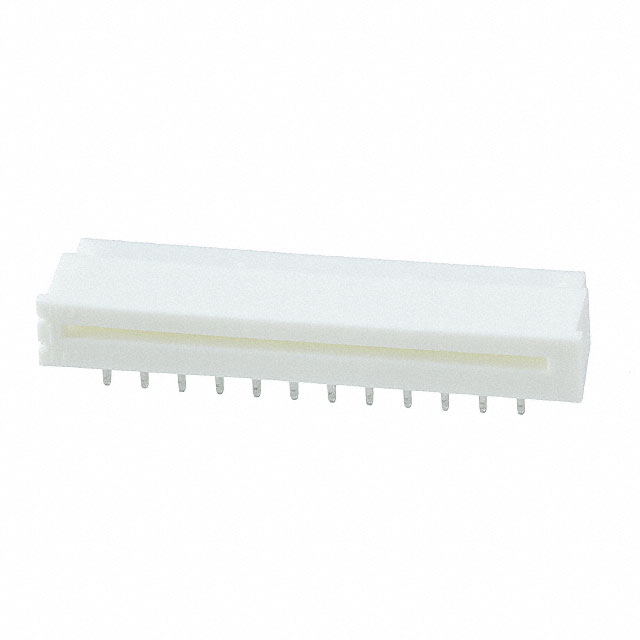

0039532244
Or copy the link below:
- Mfr.Part #
- 0039532244
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN FFC TOP 24POS 1.25MM R/A
- Stock
- 5,157
- In Stock ：
- 5,157
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- Mounting Type :
- Through Hole, Right Angle
- Series :
- 5597
- Packaging :
- Tray
- JESD-609 Code :
- e6
- Number of Rows :
- 1
- Actuator Material :
- Polybutylene Terephthalate (PBT), Polyester
- Pitch :
- 0.049 1.25mm
- Mating Cycles :
- 30
- Current Rating (Amps) :
- 1A
- Contact Finish :
- TIN BISMUTH
- Operating Temperature :
- -20°C~80°C
- Number of Positions :
- 24
- RoHS Status :
- ROHS3 Compliant
- Total Number of Contacts :
- 24
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Connector/Contact Type :
- Contacts, Top
- FFC, FCB Thickness :
- 0.30mm
- Termination :
- Solder
- Voltage - Rated :
- 200V
- Height Above Board :
- 0.213 5.40mm
- Feature :
- Zero Insertion Force (ZIF)
- MIL Conformance :
- No
- Locking Feature :
- Slide Lock
- DIN Conformance :
- No
- Contact Gender :
- FEMALE
- Pbfree Code :
- yes
- Contact Finish Thickness :
- 39.4μin 1.00μm
- IEC Conformance :
- No
- Mixed Contacts :
- No
- Cable End Type :
- Straight
- Option :
- GENERAL PURPOSE
- Connector Type :
- FFC/FPC CONNECTOR
- Housing Material :
- Polybutylene Terephthalate (PBT), Polyester
- Factory Lead Time :
- 20 Weeks
- Filter Feature :
- No
- Flat Flex Type :
- FFC, FPC
- UL Flammability Code :
- 94V-0
- Contact Material :
- Phosphor Bronze
- Material Flammability Rating :
- UL94 V-0
- Datasheets
- 0039532244
0039532244 Documents
5597 Series FFC, FPC Contacts, Top Tray 0.049 1.25mm Solder 24 Positions Through Hole, Right Angle Tin Bismuth -20°C~80°C 1A
0039532244 Overview
Packaging is FFC/FPC CONNECTOR.This device has a Through Hole, Right Angle mounting type.An orange Tray case is used to package the product.Specifically, it is one of the products in the 5597 Series.Several benefits come from the Zero Insertion Force (ZIF) feature.Devices operate at -20°C~80°C operating temperatures.
0039532244 Features
5597 series
0039532244 Applications
There are a lot of Molex
0039532244 FFC, FPC (Flat Flexible) Connectors applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
