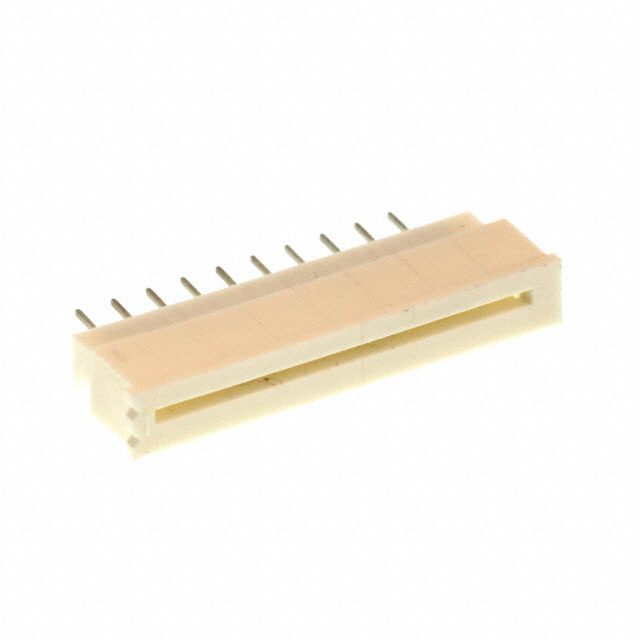

0039532205
Or copy the link below:
- Mfr.Part #
- 0039532205
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN FFC VERT 20POS 1.25MM PCB
- Stock
- 5,300
- In Stock ：
- 5,300
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- Filter Feature :
- No
- Material Flammability Rating :
- UL94 V-0
- Cable End Type :
- Straight
- Feature :
- Zero Insertion Force (ZIF)
- JESD-609 Code :
- e6
- DIN Conformance :
- No
- RoHS Status :
- ROHS3 Compliant
- Locking Feature :
- Slide Lock
- Contact Gender :
- FEMALE
- Mounting Type :
- Through Hole
- Total Number of Contacts :
- 20
- Flat Flex Type :
- FFC, FPC
- FFC, FCB Thickness :
- 0.30mm
- Voltage - Rated :
- 200V
- Connector Type :
- FFC/FPC CONNECTOR
- Height Above Board :
- 0.295 7.50mm
- Contact Finish Thickness :
- 39.4μin 1.00μm
- Current Rating (Amps) :
- 1A
- Actuator Material :
- Polybutylene Terephthalate (PBT), Polyester
- Number of Positions :
- 20
- Connector/Contact Type :
- Contacts, Vertical - 1 Sided
- Pitch :
- 0.049 1.25mm
- UL Flammability Code :
- 94V-0
- Contact Material :
- Phosphor Bronze
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- IEC Conformance :
- No
- Number of Rows :
- 1
- Housing Material :
- Polybutylene Terephthalate (PBT), Polyester
- Mating Cycles :
- 30
- Mixed Contacts :
- No
- Contact Finish :
- TIN BISMUTH
- Packaging :
- Tray
- Series :
- 5597
- MIL Conformance :
- No
- Pbfree Code :
- yes
- Factory Lead Time :
- 20 Weeks
- Termination :
- Solder
- Operating Temperature :
- -20°C~80°C
- Option :
- GENERAL PURPOSE
- Datasheets
- 0039532205
5597 Series FFC, FPC Contacts, Vertical - 1 Sided Tray 0.049 1.25mm Solder 20 Positions Through Hole Tin Bismuth -20°C~80°C 1A
0039532205 Overview
This product is packaged in a FFC/FPC CONNECTOR box.There is a Through Hole mounting type for the device.This product is packaged in a case marked Tray.Product number 5597 belongs to the 5597 Series.In many ways, it is more powerful due to its Zero Insertion Force (ZIF) feature.This device operates at a temperature of -20°C~80°C.
0039532205 Features
5597 series
0039532205 Applications
There are a lot of Molex
0039532205 FFC, FPC (Flat Flexible) Connectors applications.
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
