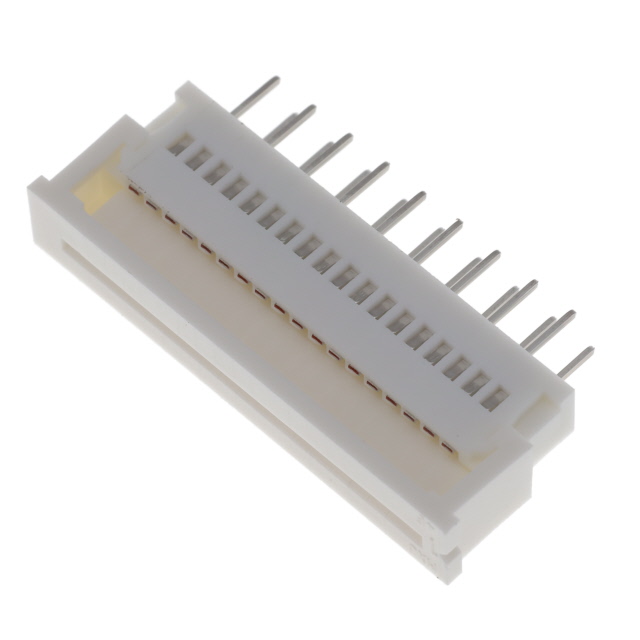

0039532185
Or copy the link below:
- Mfr.Part #
- 0039532185
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN FFC VERT 18POS 1.25MM PCB
- Stock
- 3,798
- In Stock ：
- 3,798
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- Mounting Type :
- Through Hole
- UL Flammability Code :
- 94V-0
- Height Above Board :
- 0.295 7.50mm
- Connector Type :
- FFC/FPC CONNECTOR
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- FFC, FCB Thickness :
- 0.30mm
- DIN Conformance :
- No
- Operating Temperature :
- -20°C~80°C
- Feature :
- Zero Insertion Force (ZIF)
- IEC Conformance :
- No
- Contact Finish Thickness :
- 39.4μin 1.00μm
- Mating Cycles :
- 30
- Housing Material :
- Polybutylene Terephthalate (PBT), Polyester
- Number of Positions :
- 18
- Pbfree Code :
- yes
- Voltage - Rated :
- 200V
- Material Flammability Rating :
- UL94 V-0
- Mixed Contacts :
- No
- Contact Gender :
- FEMALE
- RoHS Status :
- ROHS3 Compliant
- Termination :
- Solder
- Number of Rows :
- 1
- Pitch :
- 0.049 1.25mm
- Locking Feature :
- Slide Lock
- Option :
- GENERAL PURPOSE
- Filter Feature :
- No
- Contact Finish :
- TIN BISMUTH
- Flat Flex Type :
- FFC, FPC
- Factory Lead Time :
- 15 Weeks
- MIL Conformance :
- No
- Total Number of Contacts :
- 18
- Packaging :
- Tray
- Connector/Contact Type :
- Contacts, Vertical - 1 Sided
- Actuator Material :
- Polybutylene Terephthalate (PBT), Polyester
- JESD-609 Code :
- e6
- Series :
- 5597
- Contact Material :
- Phosphor Bronze
- Cable End Type :
- Straight
- Current Rating (Amps) :
- 1A
- Datasheets
- 0039532185
0039532185 Documents
5597 Series FFC, FPC Contacts, Vertical - 1 Sided Tray 0.049 1.25mm Solder 18 Positions Through Hole Tin Bismuth -20°C~80°C 1A
0039532185 Overview
It comes in FFC/FPC CONNECTOR packaging.There is a mounting type of Through Hole for this device.It is necessary to use a Tray case for packaging the product.This product is part of the 5597 Series.In many ways, its Zero Insertion Force (ZIF) feature makes it more powerful.In this case, the device operates at -20°C~80°C Operating Temperature.
0039532185 Features
5597 series
0039532185 Applications
There are a lot of Molex
0039532185 FFC, FPC (Flat Flexible) Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
