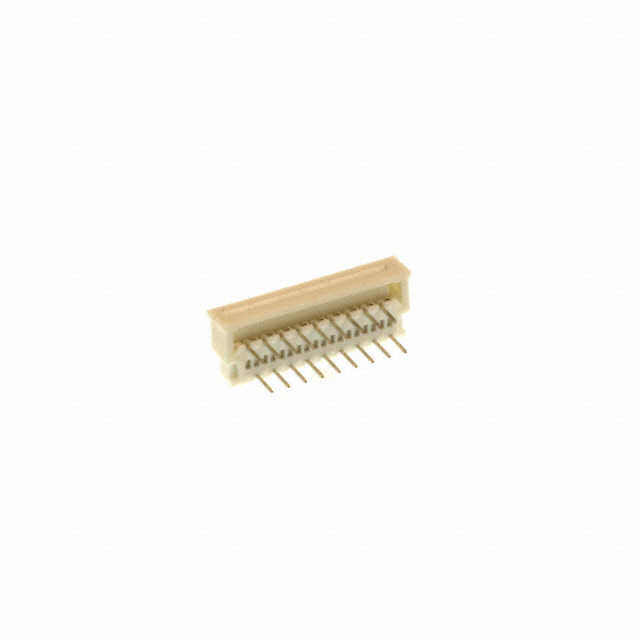

0039532184
Or copy the link below:
- Mfr.Part #
- 0039532184
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN FFC TOP 18POS 1.25MM R/A
- Stock
- 3,548
- In Stock ：
- 3,548
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- Number of Positions :
- 18
- Flat Flex Type :
- FFC, FPC
- Housing Material :
- Polybutylene Terephthalate (PBT), Polyester
- Contact Finish :
- TIN BISMUTH
- Current Rating (Amps) :
- 1A
- JESD-609 Code :
- e6
- Height Above Board :
- 0.213 5.40mm
- Mounting Type :
- Through Hole, Right Angle
- Material Flammability Rating :
- UL94 V-0
- MIL Conformance :
- No
- Total Number of Contacts :
- 18
- Number of Rows :
- 1
- Feature :
- Zero Insertion Force (ZIF)
- Series :
- 5597
- IEC Conformance :
- No
- Locking Feature :
- Slide Lock
- Operating Temperature :
- -20°C~80°C
- Contact Finish Thickness :
- 39.4μin 1.00μm
- Voltage - Rated :
- 200V
- Mixed Contacts :
- No
- Connector Type :
- FFC/FPC CONNECTOR
- Cable End Type :
- Straight
- Packaging :
- Tray
- RoHS Status :
- ROHS3 Compliant
- Mating Cycles :
- 30
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Pitch :
- 0.049 1.25mm
- Actuator Material :
- Polybutylene Terephthalate (PBT), Polyester
- FFC, FCB Thickness :
- 0.30mm
- UL Flammability Code :
- 94V-0
- Contact Material :
- Phosphor Bronze
- Filter Feature :
- No
- Connector/Contact Type :
- Contacts, Top
- Pbfree Code :
- yes
- Option :
- GENERAL PURPOSE
- Factory Lead Time :
- 15 Weeks
- Termination :
- Solder
- Contact Gender :
- FEMALE
- DIN Conformance :
- No
- Datasheets
- 0039532184
0039532184 Documents
5597 Series FFC, FPC Contacts, Top Tray 0.049 1.25mm Solder 18 Positions Through Hole, Right Angle Tin Bismuth -20°C~80°C 1A
0039532184 Overview
It comes in FFC/FPC CONNECTOR packaging.There is a mounting type of Through Hole, Right Angle for this device.It is necessary to use a Tray case for packaging the product.This product is part of the 5597 Series.In many ways, its Zero Insertion Force (ZIF) feature makes it more powerful.In this case, the device operates at -20°C~80°C Operating Temperature.
0039532184 Features
5597 series
0039532184 Applications
There are a lot of Molex
0039532184 FFC, FPC (Flat Flexible) Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
