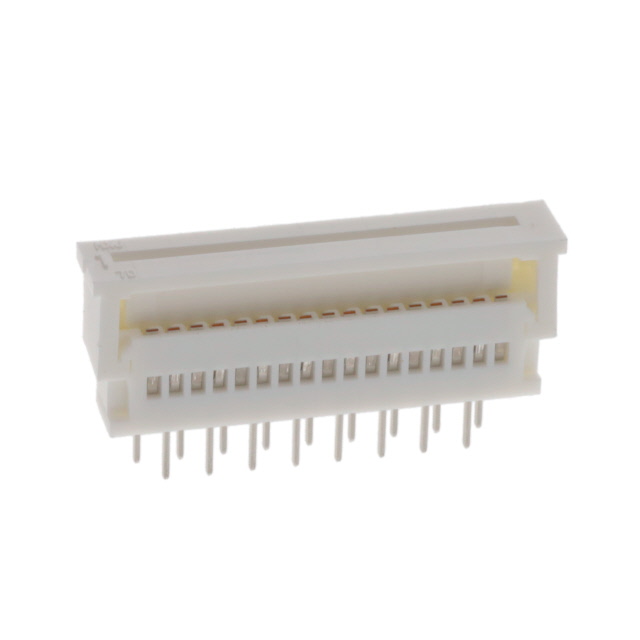

0039532175
Or copy the link below:
- Mfr.Part #
- 0039532175
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN FFC VERT 17POS 1.25MM PCB
- Stock
- 2,960
- In Stock ：
- 2,960
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Material Flammability Rating :
- UL94 V-0
- Option :
- GENERAL PURPOSE
- Contact Gender :
- FEMALE
- Operating Temperature :
- -20°C~80°C
- RoHS Status :
- ROHS3 Compliant
- Housing Material :
- Polybutylene Terephthalate (PBT), Polyester
- Pbfree Code :
- yes
- Cable End Type :
- Straight
- Total Number of Contacts :
- 17
- Connector Type :
- FFC/FPC CONNECTOR
- Voltage - Rated :
- 200V
- DIN Conformance :
- No
- Pitch :
- 0.049 1.25mm
- HTS Code :
- 8536.69.40.51
- Mixed Contacts :
- No
- UL Flammability Code :
- 94V-0
- Connector/Contact Type :
- Contacts, Vertical - 1 Sided
- MIL Conformance :
- No
- Mounting Type :
- Through Hole
- Termination :
- Solder
- Number of Positions :
- 17
- Locking Feature :
- Slide Lock
- Filter Feature :
- No
- Number of Rows :
- 1
- Feature :
- Zero Insertion Force (ZIF)
- Height Above Board :
- 0.295 7.50mm
- Contact Finish Thickness :
- 39.4μin 1.00μm
- JESD-609 Code :
- e6
- Factory Lead Time :
- 15 Weeks
- Flat Flex Type :
- FFC, FPC
- IEC Conformance :
- No
- Actuator Material :
- Polybutylene Terephthalate (PBT), Polyester
- Contact Finish :
- TIN BISMUTH
- FFC, FCB Thickness :
- 0.30mm
- Series :
- 5597
- Packaging :
- Tray
- Contact Material :
- Phosphor Bronze
- ECCN Code :
- EAR99
- Current Rating (Amps) :
- 1A
- Mating Cycles :
- 30
- Datasheets
- 0039532175
0039532175 Documents
5597 Series FFC, FPC Contacts, Vertical - 1 Sided Tray 0.049 1.25mm Solder 17 Positions Through Hole Tin Bismuth -20°C~80°C 1A
0039532175 Overview
Packaging is FFC/FPC CONNECTOR.This device has a Through Hole mounting type.An orange Tray case is used to package the product.Specifically, it is one of the products in the 5597 Series.Several benefits come from the Zero Insertion Force (ZIF) feature.Devices operate at -20°C~80°C operating temperatures.
0039532175 Features
5597 series
0039532175 Applications
There are a lot of Molex
0039532175 FFC, FPC (Flat Flexible) Connectors applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
