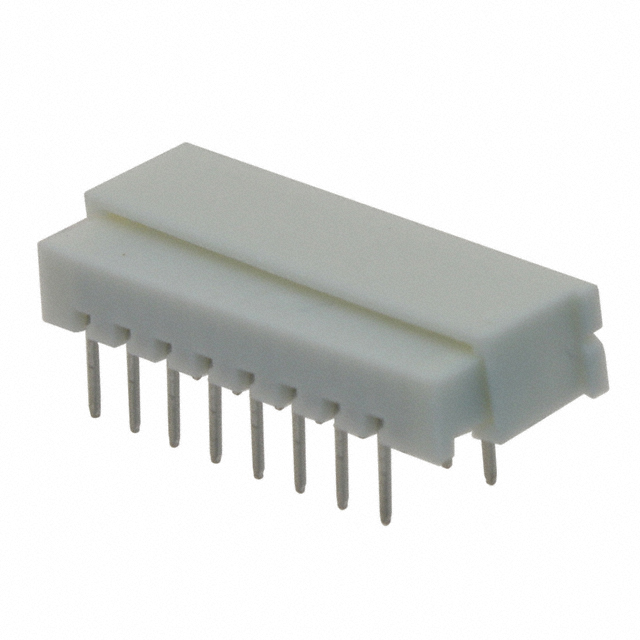

0039532164
Or copy the link below:
- Mfr.Part #
- 0039532164
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN FFC TOP 16POS 1.25MM R/A
- Stock
- 1,422
- In Stock ：
- 1,422
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Material :
- Phosphor Bronze
- Current Rating (Amps) :
- 1A
- Packaging :
- Tray
- Locking Feature :
- Slide Lock
- Operating Temperature :
- -20°C~80°C
- FFC, FCB Thickness :
- 0.30mm
- Pitch :
- 0.049 1.25mm
- Flat Flex Type :
- FFC, FPC
- Connector Type :
- FFC/FPC CONNECTOR
- Housing Material :
- Polybutylene Terephthalate (PBT), Polyester
- Pbfree Code :
- yes
- Feature :
- Zero Insertion Force (ZIF)
- Actuator Material :
- Polybutylene Terephthalate (PBT), Polyester
- Number of Positions :
- 16
- Filter Feature :
- No
- Number of Rows :
- 1
- Height Above Board :
- 0.213 5.40mm
- Mounting Type :
- Through Hole, Right Angle
- Voltage - Rated :
- 200V
- Contact Finish Thickness :
- 39.4μin 1.00μm
- Termination :
- Solder
- UL Flammability Code :
- 94V-0
- Option :
- GENERAL PURPOSE
- Factory Lead Time :
- 15 Weeks
- Contact Gender :
- FEMALE
- Material Flammability Rating :
- UL94 V-0
- Connector/Contact Type :
- Contacts, Top
- IEC Conformance :
- No
- Mating Cycles :
- 30
- MIL Conformance :
- No
- Series :
- 5597
- Mixed Contacts :
- No
- Contact Finish :
- TIN BISMUTH
- Cable End Type :
- Straight
- RoHS Status :
- ROHS3 Compliant
- JESD-609 Code :
- e6
- Total Number of Contacts :
- 16
- DIN Conformance :
- No
- Datasheets
- 0039532164
5597 Series FFC, FPC Contacts, Top Tray 0.049 1.25mm Solder 16 Positions Through Hole, Right Angle Tin Bismuth -20°C~80°C 1A
0039532164 Overview
Packaging is FFC/FPC CONNECTOR.This device has a Through Hole, Right Angle mounting type.An orange Tray case is used to package the product.Specifically, it is one of the products in the 5597 Series.Several benefits come from the Zero Insertion Force (ZIF) feature.Devices operate at -20°C~80°C operating temperatures.
0039532164 Features
5597 series
0039532164 Applications
There are a lot of Molex
0039532164 FFC, FPC (Flat Flexible) Connectors applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
