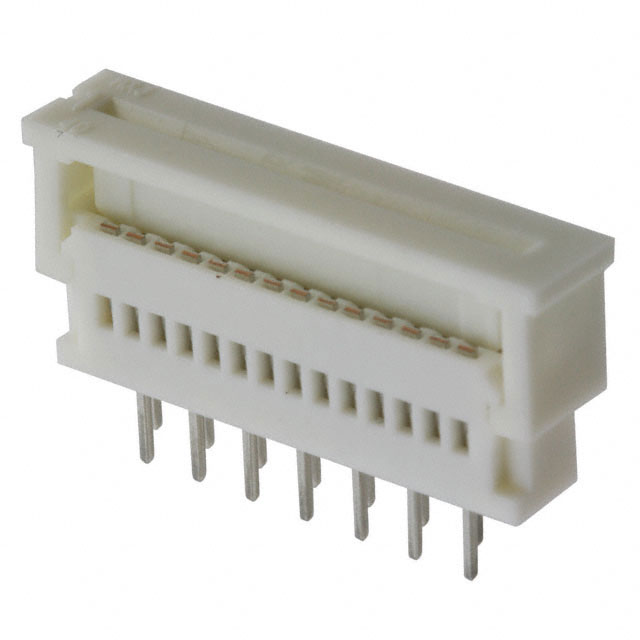

0039532145
Or copy the link below:
- Mfr.Part #
- 0039532145
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN FFC VERT 14POS 1.25MM PCB
- Stock
- 4,477
- In Stock ：
- 4,477
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- Voltage - Rated :
- 200V
- Number of Positions :
- 14
- Mounting Type :
- Through Hole
- Connector/Contact Type :
- Contacts, Vertical - 1 Sided
- Current Rating (Amps) :
- 1A
- Termination :
- Solder
- MIL Conformance :
- No
- Material Flammability Rating :
- UL94 V-0
- Housing Material :
- Polybutylene Terephthalate (PBT), Polyester
- Locking Feature :
- Slide Lock
- Feature :
- Zero Insertion Force (ZIF)
- Series :
- 5597
- RoHS Status :
- ROHS3 Compliant
- Total Number of Contacts :
- 14
- Operating Temperature :
- -20°C~80°C
- Contact Gender :
- FEMALE
- DIN Conformance :
- No
- Packaging :
- Tray
- Number of Rows :
- 1
- JESD-609 Code :
- e6
- Contact Finish :
- TIN BISMUTH
- Pitch :
- 0.049 1.25mm
- Height Above Board :
- 0.295 7.50mm
- Pbfree Code :
- yes
- FFC, FCB Thickness :
- 0.30mm
- IEC Conformance :
- No
- Filter Feature :
- No
- Cable End Type :
- Straight
- UL Flammability Code :
- 94V-0
- Contact Finish Thickness :
- 39.4μin 1.00μm
- Mixed Contacts :
- No
- Actuator Material :
- Polybutylene Terephthalate (PBT), Polyester
- Flat Flex Type :
- FFC, FPC
- Contact Material :
- Phosphor Bronze
- Connector Type :
- FFC/FPC CONNECTOR
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mating Cycles :
- 30
- Option :
- GENERAL PURPOSE
- Factory Lead Time :
- 15 Weeks
- Datasheets
- 0039532145
5597 Series FFC, FPC Contacts, Vertical - 1 Sided Tray 0.049 1.25mm Solder 14 Positions Through Hole Tin Bismuth -20°C~80°C 1A
0039532145 Overview
The product comes in a package of FFC/FPC CONNECTOR.Its mounting type is Through Hole.Packaging is performed using a Tray case.It is part of the 5597 Series of products.A number of features make it more powerful because of its Zero Insertion Force (ZIF) feature.There is no operating temperature for the device.
0039532145 Features
5597 series
0039532145 Applications
There are a lot of Molex
0039532145 FFC, FPC (Flat Flexible) Connectors applications.
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
