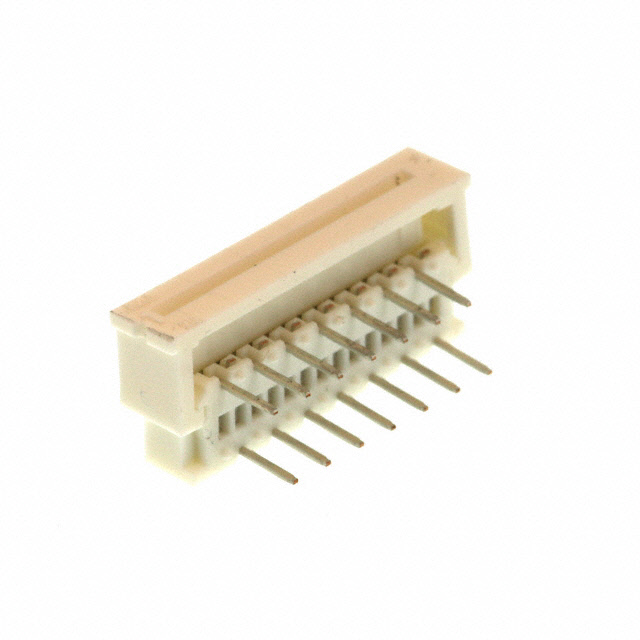

0039532144
Or copy the link below:
- Mfr.Part #
- 0039532144
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN FFC TOP 14POS 1.25MM R/A
- Stock
- 11,841
- In Stock ：
- 11,841
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- DIN Conformance :
- No
- FFC, FCB Thickness :
- 0.30mm
- JESD-609 Code :
- e6
- Housing Material :
- Polybutylene Terephthalate (PBT), Polyester
- Connector/Contact Type :
- Contacts, Top
- Flat Flex Type :
- FFC, FPC
- Material Flammability Rating :
- UL94 V-0
- Number of Rows :
- 1
- Packaging :
- Tray
- Contact Finish :
- TIN BISMUTH
- Mixed Contacts :
- No
- Pbfree Code :
- yes
- Filter Feature :
- No
- Mounting Type :
- Through Hole, Right Angle
- RoHS Status :
- ROHS3 Compliant
- Voltage - Rated :
- 200V
- Cable End Type :
- Straight
- Termination :
- Solder
- Connector Type :
- FFC/FPC CONNECTOR
- Option :
- GENERAL PURPOSE
- Actuator Material :
- Polybutylene Terephthalate (PBT), Polyester
- MIL Conformance :
- No
- Series :
- 5597
- Operating Temperature :
- -20°C~80°C
- Contact Finish Thickness :
- 39.4μin 1.00μm
- Height Above Board :
- 0.213 5.40mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Factory Lead Time :
- 15 Weeks
- Total Number of Contacts :
- 14
- IEC Conformance :
- No
- Mating Cycles :
- 30
- Locking Feature :
- Slide Lock
- Feature :
- Zero Insertion Force (ZIF)
- UL Flammability Code :
- 94V-0
- Contact Material :
- Phosphor Bronze
- Pitch :
- 0.049 1.25mm
- Contact Gender :
- FEMALE
- Number of Positions :
- 14
- Current Rating (Amps) :
- 1A
- Datasheets
- 0039532144
0039532144 Documents
5597 Series FFC, FPC Contacts, Top Tray 0.049 1.25mm Solder 14 Positions Through Hole, Right Angle Tin Bismuth -20°C~80°C 1A
0039532144 Overview
Packaging is FFC/FPC CONNECTOR.This device has a Through Hole, Right Angle mounting type.An orange Tray case is used to package the product.Specifically, it is one of the products in the 5597 Series.Several benefits come from the Zero Insertion Force (ZIF) feature.Devices operate at -20°C~80°C operating temperatures.
0039532144 Features
5597 series
0039532144 Applications
There are a lot of Molex
0039532144 FFC, FPC (Flat Flexible) Connectors applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
