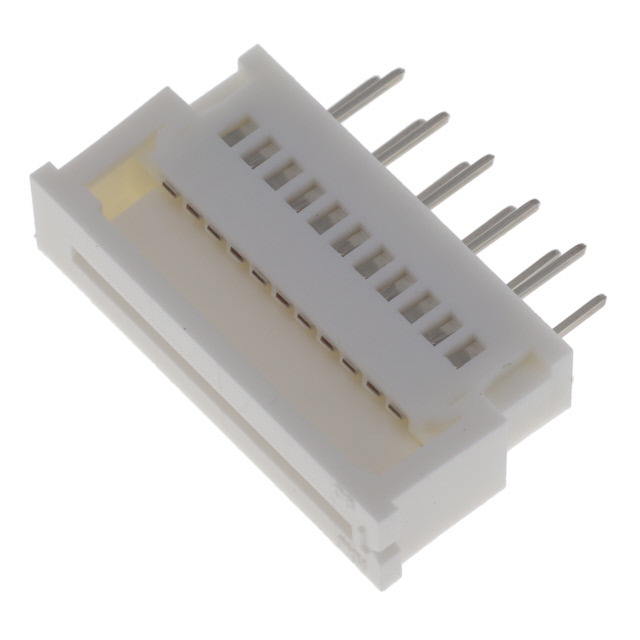

0039532115
Or copy the link below:
- Mfr.Part #
- 0039532115
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN FFC VERT 11POS 1.25MM PCB
- Stock
- 2,728
- In Stock ：
- 2,728
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- Filter Feature :
- No
- Mixed Contacts :
- No
- Voltage - Rated :
- 200V
- Termination :
- Solder
- Housing Material :
- Polybutylene Terephthalate (PBT), Polyester
- IEC Conformance :
- No
- Cable End Type :
- Straight
- Contact Material :
- Phosphor Bronze
- Material Flammability Rating :
- UL94 V-0
- Pbfree Code :
- yes
- Packaging :
- Tray
- RoHS Status :
- ROHS3 Compliant
- Pitch :
- 0.049 1.25mm
- Total Number of Contacts :
- 11
- Series :
- 5597
- Connector Type :
- FFC/FPC CONNECTOR
- Number of Rows :
- 1
- Actuator Material :
- Polybutylene Terephthalate (PBT), Polyester
- Operating Temperature :
- -20°C~80°C
- Feature :
- Zero Insertion Force (ZIF)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Connector/Contact Type :
- Contacts, Vertical - 1 Sided
- Mounting Type :
- Through Hole
- FFC, FCB Thickness :
- 0.30mm
- Locking Feature :
- Slide Lock
- Option :
- GENERAL PURPOSE
- Contact Finish :
- TIN BISMUTH
- HTS Code :
- 8536.69.40.51
- DIN Conformance :
- No
- JESD-609 Code :
- e6
- Factory Lead Time :
- 15 Weeks
- Height Above Board :
- 0.295 7.50mm
- Contact Finish Thickness :
- 39.4μin 1.00μm
- UL Flammability Code :
- 94V-0
- MIL Conformance :
- No
- Contact Gender :
- FEMALE
- Number of Positions :
- 11
- ECCN Code :
- EAR99
- Flat Flex Type :
- FFC, FPC
- Current Rating (Amps) :
- 1A
- Mating Cycles :
- 30
- Datasheets
- 0039532115
0039532115 Documents
5597 Series FFC, FPC Contacts, Vertical - 1 Sided Tray 0.049 1.25mm Solder 11 Positions Through Hole Tin Bismuth -20°C~80°C 1A
0039532115 Overview
The packaging contains FFC/FPC CONNECTOR.This device is mounted in the Through Hole position.It has been determined that a Tray case is necessary to package the product.There is a product in the 5597 Series.There are a number of advantages to its Zero Insertion Force (ZIF) feature.As a result, the device runs at -20°C~80°C Operating Temperature.
0039532115 Features
5597 series
0039532115 Applications
There are a lot of Molex
0039532115 FFC, FPC (Flat Flexible) Connectors applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
You may place an order without registering to Chip IC. We strongly recommend that you log in before purchasing as you can track your order at any time.
RFQ (Request for Quotations)It is recommended to send RFQ to get the latest prices and stock availability about the part.Our sales will reply to your inquiry within 24 hours.
Payment MethodFor your convenience, we accept multiple payment methods in USD, Such as:PayPal, Credit Card, and wire transfer.
IMPORTANT NOTICEYou may place an order without registering to 1. You'll receive an order confirmations by e-mail soon . (Please remember to check the spam box if you didn't hear from us). 2. Since stock availability and prices may change at any time, the sales will reconfirm the order details and update you at soonest time.
Most of our products are shipped via FEDEX,DHL,UPS and SF EXPRESS...
Shipping CostShipping Cost starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).If customer have shipping account, we can make shipment under customer’s shipping account with freight collect directly.
The basic freight (for package ≤0.5 KG ) depends on the time zones and countries
Once the goods are shipped, estimated delivery time depends on the shipping methods you chose. You can track it by the tracking no.
