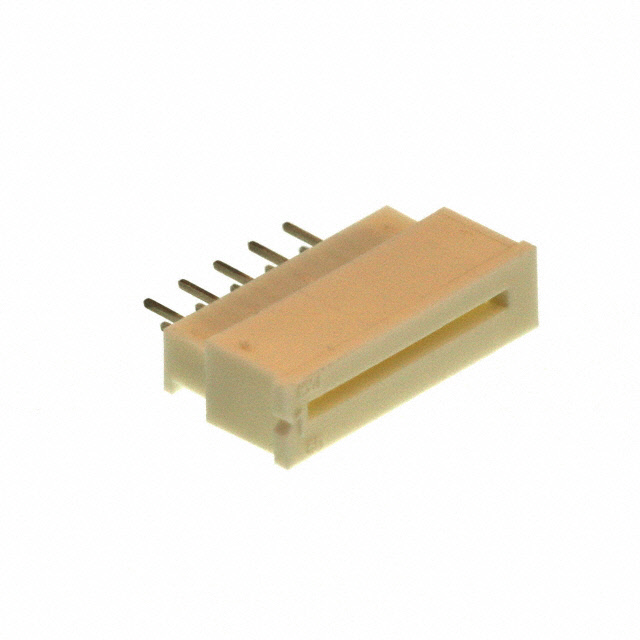

0039532105
Or copy the link below:
- Mfr.Part #
- 0039532105
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN FFC VERT 10POS 1.25MM PCB
- Stock
- 25,141
- In Stock ：
- 25,141
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- Series :
- 5597
- Pitch :
- 0.049 1.25mm
- Mounting Type :
- Through Hole
- Voltage - Rated :
- 200V
- Contact Material :
- Phosphor Bronze
- Filter Feature :
- No
- Current Rating (Amps) :
- 1A
- Material Flammability Rating :
- UL94 V-0
- Pbfree Code :
- yes
- Operating Temperature :
- -20°C~80°C
- Housing Material :
- Polybutylene Terephthalate (PBT), Polyester
- Termination :
- Solder
- Connector/Contact Type :
- Contacts, Vertical - 1 Sided
- Height Above Board :
- 0.295 7.50mm
- Contact Finish Thickness :
- 39.4μin 1.00μm
- Number of Positions :
- 10
- Total Number of Contacts :
- 10
- Option :
- GENERAL PURPOSE
- Contact Finish :
- TIN BISMUTH
- Locking Feature :
- Slide Lock
- UL Flammability Code :
- 94V-0
- Factory Lead Time :
- 15 Weeks
- Actuator Material :
- Polybutylene Terephthalate (PBT), Polyester
- FFC, FCB Thickness :
- 0.30mm
- IEC Conformance :
- No
- Mixed Contacts :
- No
- Cable End Type :
- Straight
- DIN Conformance :
- No
- RoHS Status :
- ROHS3 Compliant
- Number of Rows :
- 1
- MIL Conformance :
- No
- Packaging :
- Tray
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Flat Flex Type :
- FFC, FPC
- Mating Cycles :
- 30
- Feature :
- Zero Insertion Force (ZIF)
- Contact Gender :
- FEMALE
- JESD-609 Code :
- e6
- Connector Type :
- FFC/FPC CONNECTOR
- Datasheets
- 0039532105
0039532105 Documents
5597 Series FFC, FPC Contacts, Vertical - 1 Sided Tray 0.049 1.25mm Solder 10 Positions Through Hole Tin Bismuth -20°C~80°C 1A
0039532105 Overview
Packaging is in the form of FFC/FPC CONNECTOR.The mounting type of the device is Through Hole.A Tray case is used to package the product.A product of the 5597 Series, it belongs to the range of products of that series.A number of features make the Zero Insertion Force (ZIF) feature more powerful.-20°C~80°C Operating Temperature is the default operating temperature for the device.
0039532105 Features
5597 series
0039532105 Applications
There are a lot of Molex
0039532105 FFC, FPC (Flat Flexible) Connectors applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
