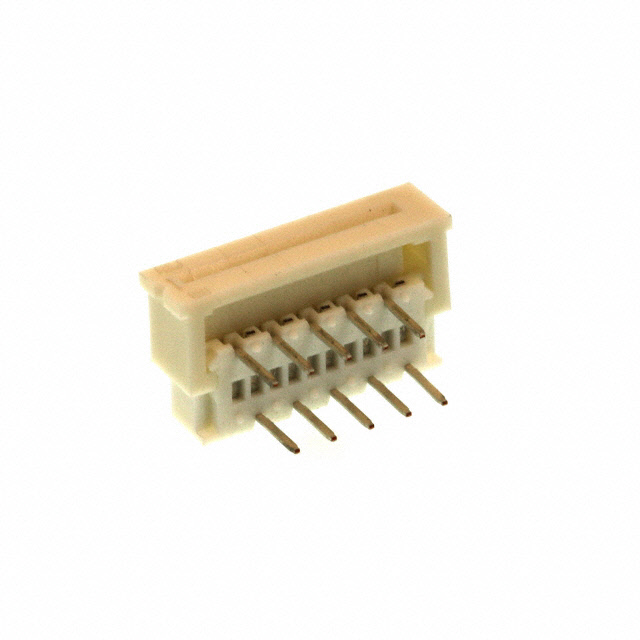

0039532104
Or copy the link below:
- Mfr.Part #
- 0039532104
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN FFC TOP 10POS 1.25MM R/A
- Stock
- 2,866
- In Stock ：
- 2,866
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- Current Rating (Amps) :
- 1A
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Voltage - Rated :
- 200V
- Cable End Type :
- Straight
- Material Flammability Rating :
- UL94 V-0
- DIN Conformance :
- No
- FFC, FCB Thickness :
- 0.30mm
- Contact Material :
- Phosphor Bronze
- Contact Finish Thickness :
- 39.4μin 1.00μm
- Feature :
- Zero Insertion Force (ZIF)
- Connector/Contact Type :
- Contacts, Top
- Pbfree Code :
- yes
- Option :
- GENERAL PURPOSE
- Flat Flex Type :
- FFC, FPC
- Mounting Type :
- Through Hole, Right Angle
- Filter Feature :
- No
- Number of Rows :
- 1
- Connector Type :
- FFC/FPC CONNECTOR
- IEC Conformance :
- No
- Contact Gender :
- FEMALE
- MIL Conformance :
- No
- Locking Feature :
- Slide Lock
- RoHS Status :
- ROHS3 Compliant
- Series :
- 5597
- Contact Finish :
- TIN BISMUTH
- Height Above Board :
- 0.213 5.40mm
- Operating Temperature :
- -20°C~80°C
- UL Flammability Code :
- 94V-0
- Pitch :
- 0.049 1.25mm
- Factory Lead Time :
- 15 Weeks
- Termination :
- Solder
- Mating Cycles :
- 30
- Number of Positions :
- 10
- Housing Material :
- Polybutylene Terephthalate (PBT), Polyester
- Total Number of Contacts :
- 10
- JESD-609 Code :
- e6
- Actuator Material :
- Polybutylene Terephthalate (PBT), Polyester
- Packaging :
- Tray
- Mixed Contacts :
- No
- Datasheets
- 0039532104
0039532104 Documents
5597 Series FFC, FPC Contacts, Top Tray 0.049 1.25mm Solder 10 Positions Through Hole, Right Angle Tin Bismuth -20°C~80°C 1A
0039532104 Overview
A FFC/FPC CONNECTOR package is included with it.Through Hole, Right Angle indicates that the device is mounted.An Tray case is utilized for packaging the product.The product is a part of the 5597 Series.In many ways, Zero Insertion Force (ZIF) makes it more powerful.Operating temperature is set to -20°C~80°C.
0039532104 Features
5597 series
0039532104 Applications
There are a lot of Molex
0039532104 FFC, FPC (Flat Flexible) Connectors applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
