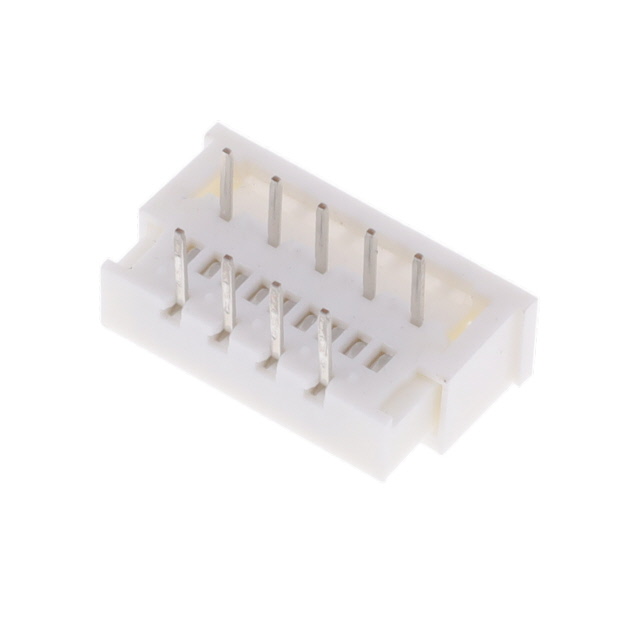

0039532094
Or copy the link below:
- Mfr.Part #
- 0039532094
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN FFC FPC TOP 9POS 1.25MM R/A
- Stock
- 14,488
- In Stock ：
- 14,488
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- Connector/Contact Type :
- Contacts, Top
- Material Flammability Rating :
- UL94 V-0
- Mating Cycles :
- 30
- Housing Material :
- Polybutylene Terephthalate (PBT), Polyester
- Factory Lead Time :
- 15 Weeks
- Contact Plating :
- Tin
- Filter Feature :
- No
- Current Rating :
- 1A
- Contact Resistance :
- 20mOhm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Material :
- Phosphor Bronze
- Contact Finish :
- TIN BISMUTH
- Number of Rows :
- 1
- Locking Feature :
- Slide Lock
- Pbfree Code :
- yes
- Voltage - Rated :
- 200V
- Gender :
- FEMALE
- Cable End Type :
- Straight
- Actuator Material :
- Polybutylene Terephthalate (PBT), Polyester
- Flammability Rating :
- UL94 V-0
- Housing Color :
- Natural
- Feature :
- Zero Insertion Force (ZIF)
- Flat Flex Type :
- FFC, FPC
- Stackable :
- No
- Option :
- GENERAL PURPOSE
- IEC Conformance :
- No
- Pitch :
- 0.049 1.25mm
- Height Above Board :
- 0.213 5.40mm
- Connector Type :
- FFC/FPC CONNECTOR
- Contact Finish Thickness :
- 39.4μin 1.00μm
- Packaging :
- Tray
- Orientation :
- Right Angle, Vertical
- MIL Conformance :
- No
- Termination :
- Solder
- Mixed Contacts :
- No
- Mounting Type :
- Through Hole, Right Angle
- DIN Conformance :
- No
- Length :
- 17mm
- Depth :
- 9.8mm
- Contact Location :
- Top
- JESD-609 Code :
- e6
- Number of Contacts :
- 9
- Series :
- 5597
- RoHS Status :
- ROHS3 Compliant
- Operating Temperature :
- -20°C~80°C
- FFC, FCB Thickness :
- 0.30mm
- Datasheets
- 0039532094
0039532094 Documents
5597 Series FFC, FPC Contacts, Top Tray 0.049 1.25mm Solder Through Hole, Right Angle Tin Bismuth -20°C~80°C
0039532094 Overview
Packaging is in the form of FFC/FPC CONNECTOR.The mounting type of the device is Through Hole, Right Angle.A Tray case is used to package the product.A product of the 5597 Series, it belongs to the range of products of that series.A number of features make the Zero Insertion Force (ZIF) feature more powerful.-20°C~80°C Operating Temperature is the default operating temperature for the device.
0039532094 Features
5597 series
0039532094 Applications
There are a lot of Molex
0039532094 FFC, FPC (Flat Flexible) Connectors applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
