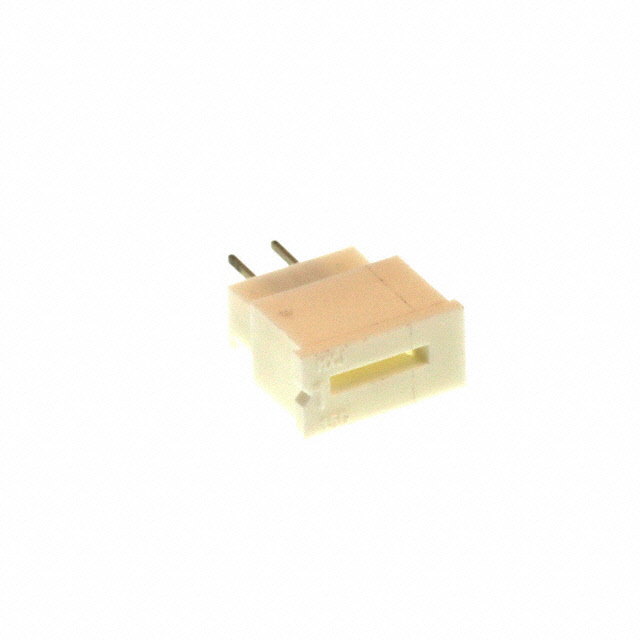

0039532035
Or copy the link below:
- Mfr.Part #
- 0039532035
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN FFC VERT 3POS 1.25MM PCB
- Stock
- 6,400
- In Stock ：
- 6,400
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- Series :
- 5597
- Mounting Type :
- Through Hole
- Option :
- GENERAL PURPOSE
- Flat Flex Type :
- FFC, FPC
- RoHS Status :
- ROHS3 Compliant
- Number of Rows :
- 1
- Locking Feature :
- Slide Lock
- Feature :
- Zero Insertion Force (ZIF)
- FFC, FCB Thickness :
- 0.30mm
- Current Rating (Amps) :
- 1A
- Material Flammability Rating :
- UL94 V-0
- Pitch :
- 0.049 1.25mm
- Factory Lead Time :
- 15 Weeks
- Contact Gender :
- FEMALE
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- UL Flammability Code :
- 94V-0
- Termination :
- Solder
- DIN Conformance :
- No
- JESD-609 Code :
- e6
- Connector Type :
- FFC/FPC CONNECTOR
- Number of Positions :
- 3
- Filter Feature :
- No
- Contact Finish Thickness :
- 39.4μin 1.00μm
- Actuator Material :
- Polybutylene Terephthalate (PBT), Polyester
- Total Number of Contacts :
- 3
- Height Above Board :
- 0.295 7.50mm
- Operating Temperature :
- -20°C~80°C
- Contact Material :
- Phosphor Bronze
- Mating Cycles :
- 30
- Pbfree Code :
- yes
- Packaging :
- Tray
- Cable End Type :
- Straight
- Contact Finish :
- TIN BISMUTH
- Mixed Contacts :
- No
- IEC Conformance :
- No
- MIL Conformance :
- No
- Connector/Contact Type :
- Contacts, Vertical - 1 Sided
- Housing Material :
- Polybutylene Terephthalate (PBT), Polyester
- Voltage - Rated :
- 200V
- Datasheets
- 0039532035
0039532035 Documents
5597 Series FFC, FPC Contacts, Vertical - 1 Sided Tray 0.049 1.25mm Solder 3 Positions Through Hole Tin Bismuth -20°C~80°C 1A
0039532035 Overview
Packaging is in the form of FFC/FPC CONNECTOR.The mounting type of the device is Through Hole.A Tray case is used to package the product.A product of the 5597 Series, it belongs to the range of products of that series.A number of features make the Zero Insertion Force (ZIF) feature more powerful.-20°C~80°C Operating Temperature is the default operating temperature for the device.
0039532035 Features
5597 series
0039532035 Applications
There are a lot of Molex
0039532035 FFC, FPC (Flat Flexible) Connectors applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
