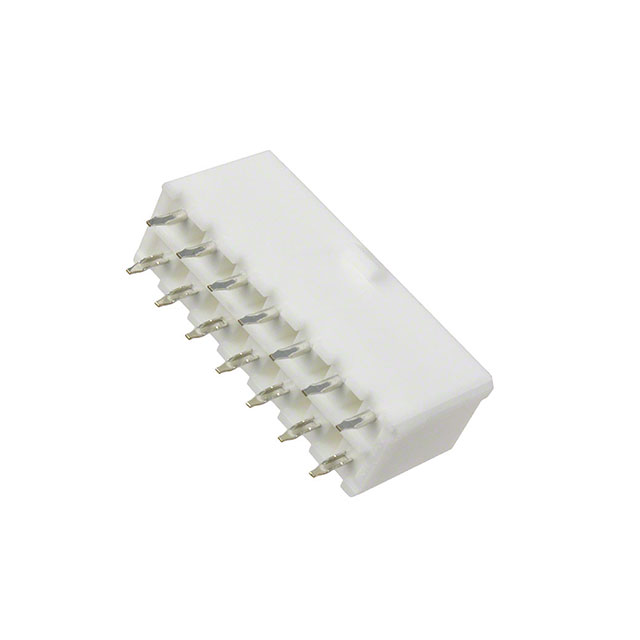

0039310140
Or copy the link below:
- Mfr.Part #
- 0039310140
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 14POS 4.2MM
- Stock
- 9,696
- In Stock ：
- 9,696
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Insulation Color :
- Natural
- Factory Lead Time :
- 5 Weeks
- Contact Finish - Mating :
- Tin
- Contact Finish Thickness - Post :
- 35.0μin 0.90μm
- Insulation Height :
- 0.504 12.80mm
- RoHS Status :
- ROHS3 Compliant
- Contact Type :
- Male Pin
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Termination :
- Solder
- Applications :
- General Purpose, Industrial, Telecommunications
- Shrouding :
- Shrouded - 4 Wall
- Contact Length - Post :
- 0.138 3.50mm
- Number of Positions Loaded :
- All
- Connector Type :
- Header
- Contact Shape :
- Square
- Number of Positions :
- 14
- Contact Material :
- Brass
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Pitch - Mating :
- 0.165 4.20mm
- Number of Rows :
- 2
- Packaging :
- Bulk
- Row Spacing - Mating :
- 0.165 (4.20mm)
- Material Flammability Rating :
- UL94 V-0
- Series :
- Mini-Fit Jr 5566
- Contact Finish Thickness - Mating :
- 35.4μin 0.90μm
- Fastening Type :
- Locking Ramp
- Style :
- Board to Cable/Wire
- Mounting Type :
- Through Hole
- Datasheets
- 0039310140
Mini-Fit Jr 5566 Series 2-Row Header Solder Brass Bulk Through Hole Tin Polyamide (PA66), Nylon 6/6 14-Position Board to Cable/Wire 0.504 12.80mm Height
0039310140 Overview
Currently, it is packaged in Header.The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the Mini-Fit Jr 5566 Series, it belongs to the range of products of that series.This device may be used for the purpose of General Purpose, Industrial, Telecommunications.
0039310140 Features
Mini-Fit Jr 5566 series
0039310140 Applications
There are a lot of Molex
0039310140 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
