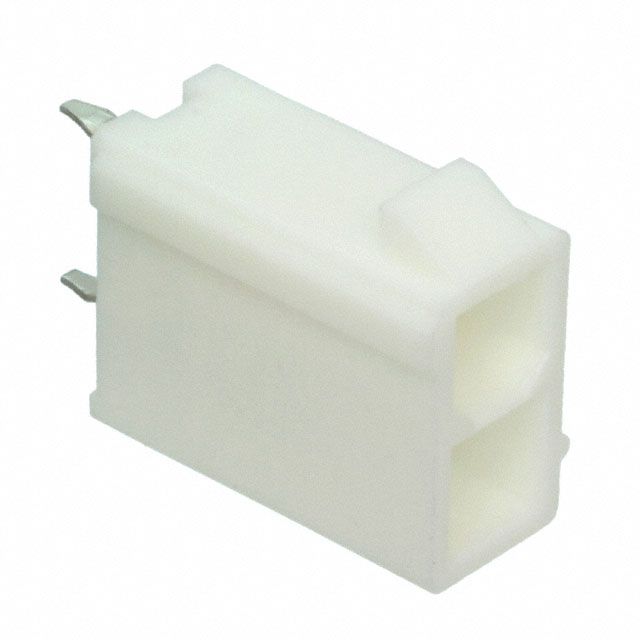

0039310028
Or copy the link below:
- Mfr.Part #
- 0039310028
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 2POS
- Stock
- 9,153
- In Stock ：
- 9,153
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Contact Finish - Mating :
- Gold
- Insulation Color :
- Natural
- Contact Finish - Post :
- Tin
- Material Flammability Rating :
- UL94 V-0
- Connector Type :
- Header
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Packaging :
- Bulk
- Insulation Height :
- 0.504 12.80mm
- Contact Length - Post :
- 0.138 3.50mm
- Fastening Type :
- Locking Ramp
- Contact Shape :
- Square
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Applications :
- General Purpose, Industrial, Telecommunications
- RoHS Status :
- ROHS3 Compliant
- Number of Positions :
- 2
- Style :
- Board to Cable/Wire
- Row Spacing - Mating :
- 0.165 (4.20mm)
- Shrouding :
- Shrouded - 4 Wall
- Number of Positions Loaded :
- All
- Contact Type :
- Male Pin
- Mounting Type :
- Through Hole
- Factory Lead Time :
- 7 Weeks
- Pbfree Code :
- yes
- Contact Material :
- Brass
- Series :
- Mini-Fit Jr 5566
- Termination :
- Solder
- Datasheets
- 0039310028
Mini-Fit Jr 5566 Series Header Solder Brass Bulk Through Hole Gold Polyamide (PA66), Nylon 6/6 2-Position Board to Cable/Wire 0.504 12.80mm Height
0039310028 Overview
You get it in Header packaging.Mounting type Through Hole is selected for the device.Packaged in a Bulk case.A member of the Mini-Fit Jr 5566 Series.Here's a possible application for the device: General Purpose, Industrial, Telecommunications.
0039310028 Features
Mini-Fit Jr 5566 series
0039310028 Applications
There are a lot of Molex
0039310028 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
