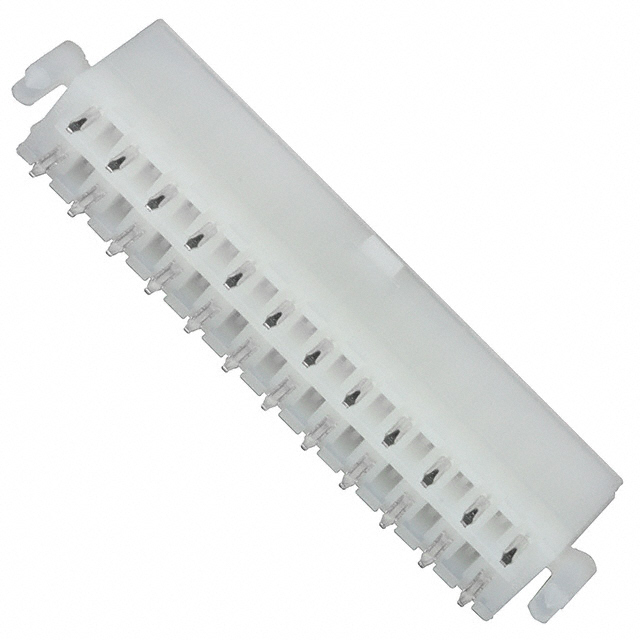

0039306247
Or copy the link below:
- Mfr.Part #
- 0039306247
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 24POS 4.2MM
- Stock
- 1,785
- In Stock ：
- 1,785
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Contact Finish Thickness - Mating :
- 100.0μin 2.54μm
- Contact Shape :
- Square
- Series :
- Mini-Fit Jr 5566
- Pitch - Mating :
- 0.165 4.20mm
- Applications :
- General Purpose, Industrial, Telecommunications
- Number of Positions :
- 24
- Shrouding :
- Shrouded - 4 Wall
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Rows :
- 2
- Insulation Height :
- 0.504 12.80mm
- Contact Finish - Mating :
- Tin
- Feature :
- Board Lock
- Style :
- Board to Cable/Wire
- Factory Lead Time :
- 6 Weeks
- RoHS Status :
- ROHS3 Compliant
- Contact Material :
- Brass
- Number of Positions Loaded :
- All
- Insulation Color :
- Natural
- Fastening Type :
- Locking Ramp
- Termination :
- Solder
- Mounting Type :
- Through Hole
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Row Spacing - Mating :
- 0.165 (4.20mm)
- Contact Type :
- Male Pin
- Packaging :
- Tray
- Contact Length - Post :
- 0.138 3.50mm
- Material Flammability Rating :
- UL94 V-2
- Connector Type :
- Header
- Datasheets
- 0039306247
Mini-Fit Jr 5566 Series 2-Row Header Solder Brass Tray Through Hole Tin Polyamide (PA66), Nylon 6/6 24-Position Board to Cable/Wire 0.504 12.80mm Height
0039306247 Overview
It comes in Header packaging.The device's mounting type is Through Hole.In order to package the product, a Tray case is used.It belongs to the Mini-Fit Jr 5566 Series of products.General Purpose, Industrial, Telecommunications is a possible application for the device.Its Board Lock feature renders it more powerful in many ways.
0039306247 Features
Mini-Fit Jr 5566 series
0039306247 Applications
There are a lot of Molex
0039306247 Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
