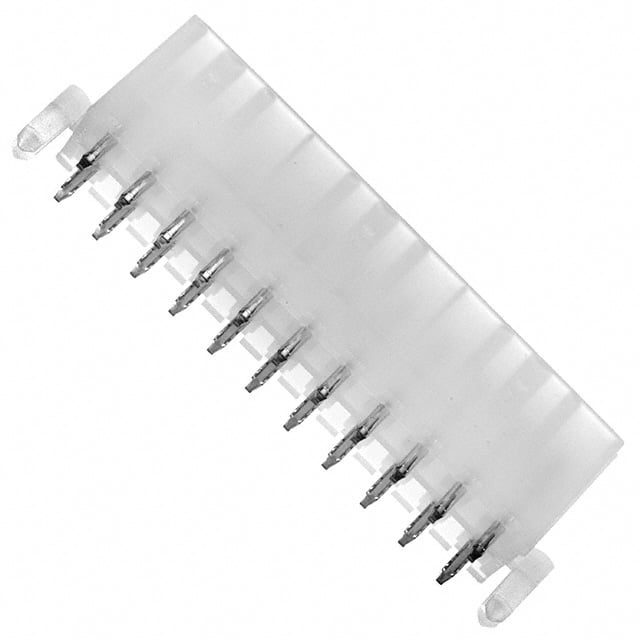

0039306227
Or copy the link below:
- Mfr.Part #
- 0039306227
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 22POS 4.2MM
- Stock
- 15,303
- In Stock ：
- 15,303
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Fastening Type :
- Locking Ramp
- Shrouding :
- Shrouded - 4 Wall
- Insulation Color :
- Natural
- Insulation Height :
- 0.504 12.80mm
- Contact Finish Thickness - Mating :
- 100.0μin 2.54μm
- Contact Shape :
- Square
- Connector Type :
- Header
- Contact Material :
- Brass
- Pitch - Mating :
- 0.165 4.20mm
- Material Flammability Rating :
- UL94 V-2
- Factory Lead Time :
- 8 Weeks
- Applications :
- General Purpose, Industrial, Telecommunications
- Number of Positions Loaded :
- All
- RoHS Status :
- ROHS3 Compliant
- Number of Rows :
- 2
- Number of Positions :
- 22
- Packaging :
- Tray
- Row Spacing - Mating :
- 0.165 (4.20mm)
- Feature :
- Board Lock
- Contact Finish - Mating :
- Tin
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Termination :
- Solder
- Style :
- Board to Cable/Wire
- Contact Length - Post :
- 0.138 3.50mm
- Series :
- Mini-Fit Jr 5566
- Contact Type :
- Male Pin
- Mounting Type :
- Through Hole
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Datasheets
- 0039306227
Mini-Fit Jr 5566 Series 2-Row Header Solder Brass Tray Through Hole Tin Polyamide (PA66), Nylon 6/6 22-Position Board to Cable/Wire 0.504 12.80mm Height
0039306227 Overview
Packaging is Header.Through Hole is the mounting type.Packaging for the product is carried out via a Tray case.As a product of the Mini-Fit Jr 5566 Series, it can be found in this category.A possible application of the device would be General Purpose, Industrial, Telecommunications.With its Board Lock feature, it is more powerful in many ways.
0039306227 Features
Mini-Fit Jr 5566 series
0039306227 Applications
There are a lot of Molex
0039306227 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
